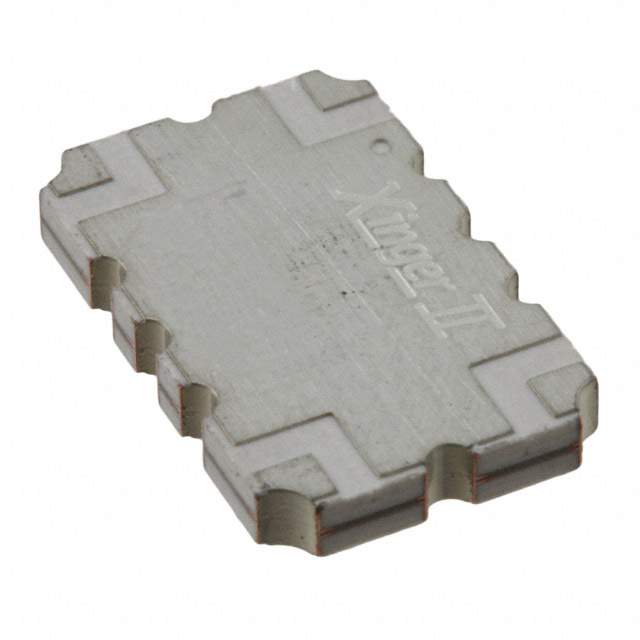

XC1900A-03SR Real Image
Same model may have multiple batches, images only for reference.

XC1900A-03SR

Part No XC1900A-03SR
Manufacturer Anaren
Catalog RF Directional Coupler
Description COUPLER 90DEG 1700-2000MHZ 3DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Reel - TR
Status Active
Coupler Type Standard
Frequency 1.4GHz to 2GHz
Coupling Factor 3dB
Applications AMPS
Insertion Loss 0.15dB
Maximum Power Dissipation 150W
Isolation 25dB
Return Loss 24.9dB
Case / Package SMD
Win Source Part Number 214050-XC1900A-03SR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian XC1900A-03SR CAD Model

Description

The Anaren 214050-XC1900A-03SR coupler is an ideal choice for AMPS applications.

  • Type: Standard coupler
  • Frequency Range: 1.4GHz to 2GHz
  • Coupling Factor: 3dB
  • Insertion Loss: 0.15dB
  • Isolation: 25dB
  • Return Loss: 24.9dB
  • Category: RF/IF and RFID
  • Maximum Power Dissipation: 150W
  • Packaging: SMD on a reel
  • Supply and Demand Status: Balanced
