Same model may have multiple batches, images only for reference.

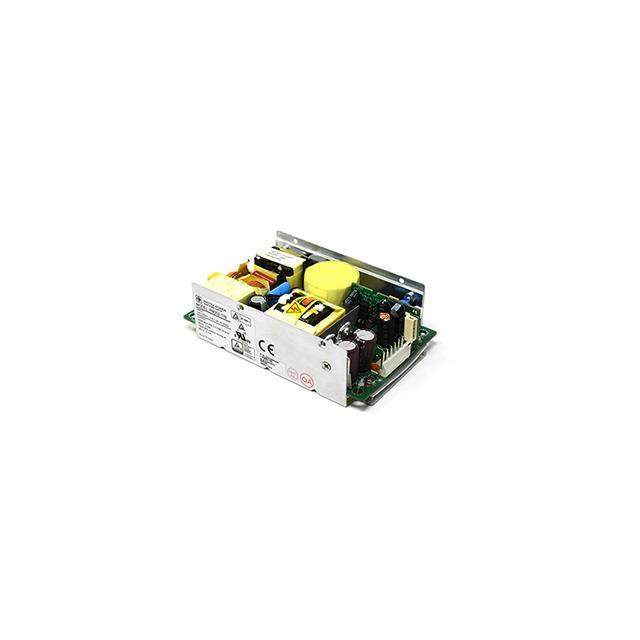

PM60-18A Real Image
Same model may have multiple batches, images only for reference.

PM60-18A

Part No PM60-18A
Manufacturer TT Electronics
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 48V 64W  /  Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
Datasheet
PM60-18A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr TT Electronics/Power Partners Inc.
Series PM60 (64W)
Package Bag
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 48V
Current - Output 1 11 A
Power (Watts) 64W
Applications ITE (Commercial), Medical
Efficiency 88%
Temperature Range - Operating -10°C ~ 70°C
Features DC Input Capable, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm)
Approval Agency CE, cTUVus, cURus, TUV
Standard Number 60601-1; 62368-1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 3989-PM60-18A
Standard Package 1
Win Source Part Number 1015756-PM60-18A
Ultra Librarian 3D Model Ultra Librarian PM60-18A CAD Model

Description

The PM60 series from TT Electronics/Power Partners Inc. is a reliable and efficient power supply that can be used for a variety of applications. This open frame power supply has a power output of 64W and a voltage input range of 90 ~ 264 VAC.

  • Power Output: 64W
  • Voltage Input: 90 ~ 264 VAC
  • Output Voltage: 48V
  • Efficiency: 88%
  • Mounting: Chassis mount
  • Operating Temperature: -10°C to 70°C
  • Applications: ITE (Commercial) and Medical
  • Safety Approvals: CE, cTUVus, cURus, TUV
  • Dimensions: 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm)
