Same model may have multiple batches, images only for reference.

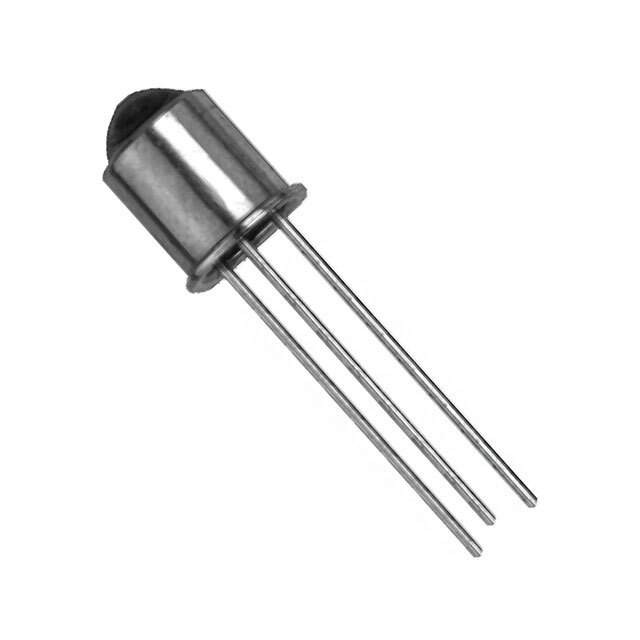

OP805SL Real Image
Same model may have multiple batches, images only for reference.

OP805SL

Part No OP805SL
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR NPN 890NM TO-18
Datasheet
OP805SL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 50mA
Current - Dark (Id) (Max) 100nA
Wavelength 890nm
Maximum Power Dissipation 250mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -65°C to 125°C (TA)
Dimension TO-206AA, TO-18-3 Metal Can
Win Source Part Number 1084518-OP805SL
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian OP805SL CAD Model

Description

The TT Electronics/Optek Technology electronic component with Win Source Part Number 1084518-OP805SL is a through-hole mounted sensor/transducer that operates at a wavelength of 890nm.

  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 250mW
  • Dark Current: 100nA
  • Operating Temperature: -65℃ to 125℃
  • Package: TO-206AA, TO-18-3 metal can
  • Maximum Current Collector: 50mA
  • Supply and Demand Status: Balanced
  • Quantity per Package: 1k pcs
