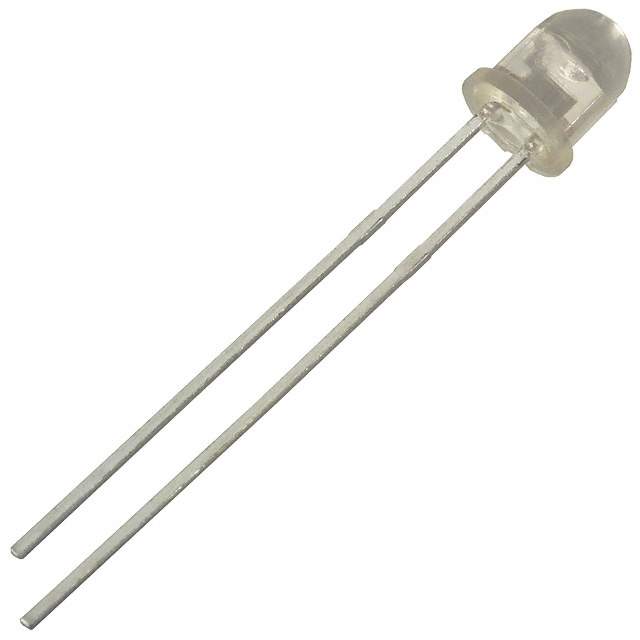

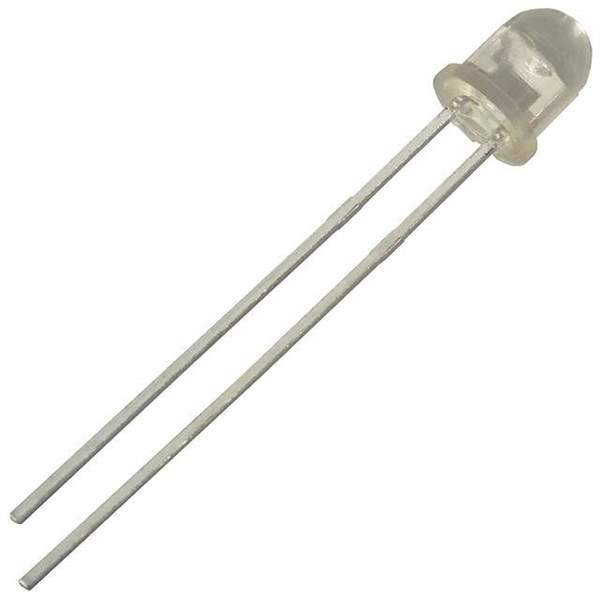

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Series OP290
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 1A
Radiant Intensity (Ie) Min @ If 2.4mW/cm² @ 20mA
Wavelength 890nm
Voltage - Forward (Vf) (Typ) 1.75V
Viewing Angle 20°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number OP297
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 1,000
Win Source Part Number 1023823-OP297FAB
Ultra Librarian 3D Model Ultra Librarian OP297FAB CAD Model

Description

The OP297FAB is an infrared LED emitter from Optek Technology that offers a viewing angle of 20° and a wavelength of 890nm.

  • Radiant Intensity: 2.4mW/cm²
  • Maximum Forward Current: 1A
  • RoHS: Compliant
