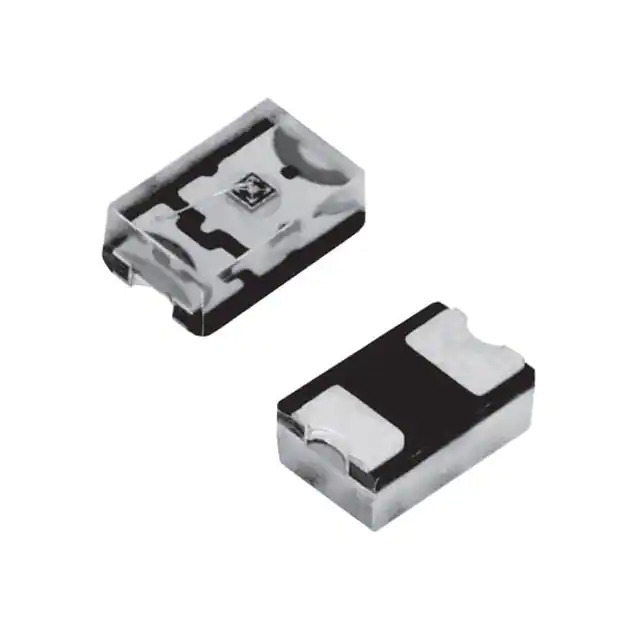

Same model may have multiple batches, images only for reference.
VSMB1940X01 Vishay
Same model may have multiple batches, images only for reference.

VSMB1940X01

Part No VSMB1940X01
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA 0805
Datasheet
VSMB1940X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay Semiconductor Opto Division
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 3mW/sr @ 100mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.35V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Base Product Number VSMB1940
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371981-VSMB1940X01
Ultra Librarian 3D Model Ultra Librarian VSMB1940X01 CAD Model

Description

The 1371981-VSMB1940X01 is an infrared (IR) LED emitter from Vishay Semiconductor Opto Division's automotive AEC-Q101 series.

  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric)
  • Forward Voltage (Vf): 1.35V
  • Viewing Angle: 120°
  • Maximum Forward Current (If): 100mA
  • Wavelength: 940nm
  • Temperature Range: -40°C to 85°C
  • Application: Automotive
