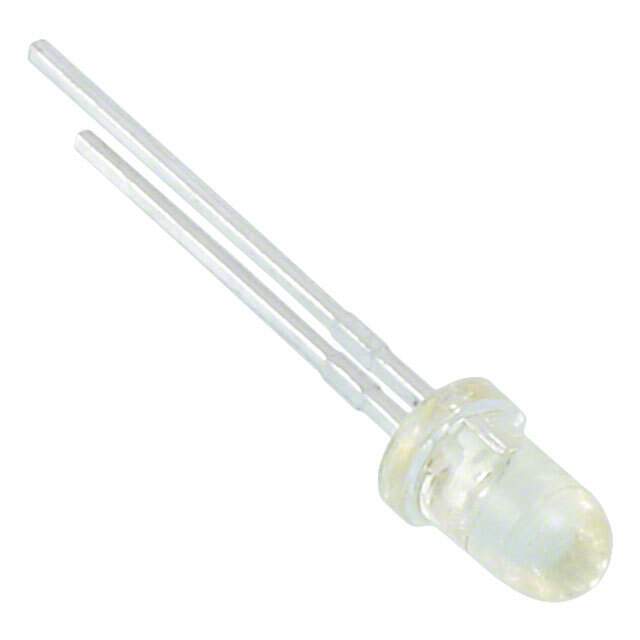

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 1.95mW/cm² @ 20mA
Wavelength 935nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 18°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case T-1
Base Product Number OP165
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 365-1046
Standard Package 1,000
Win Source Part Number 1178813-OP165A
Ultra Librarian 3D Model Ultra Librarian OP165A CAD Model

Description

The OP165A is an infrared LED emitter manufactured by TT Electronics/Optek Technology.

  • Win Source Part Number: 1178813-OP165A
  • View Orientation: Top View
  • Package: T-1
  • Standard Package: 1,000
  • Current DC Forward: 50mA
  • Viewing Angle: 18°
  • Voltage Forward: 1.6V
  • Wavelength: 935nm
  • Radiant Intensity: 1.95mW/cm² @ 20mA
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 100°C
