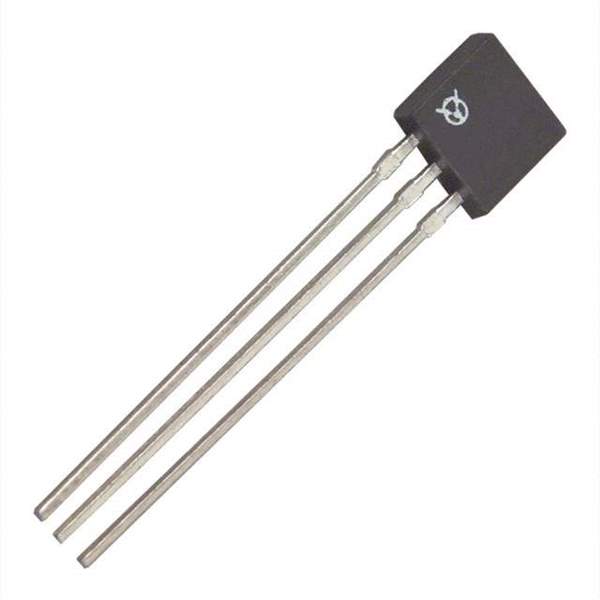

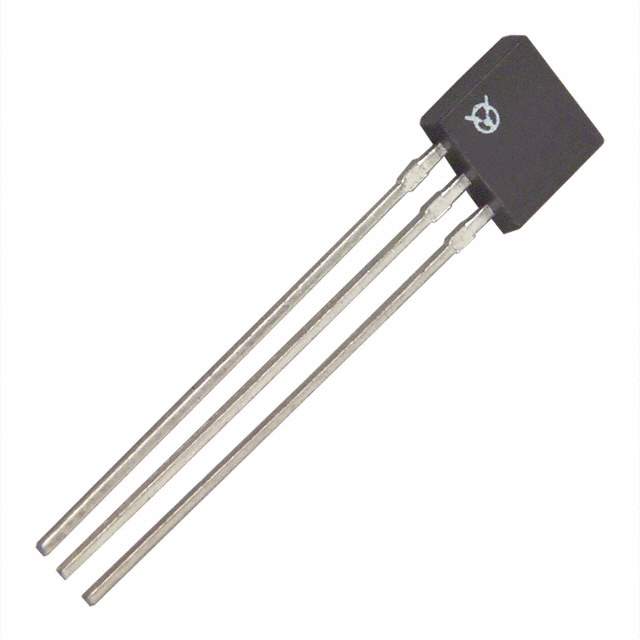

OHS3140U Real Image
Same model may have multiple batches, images only for reference.

OHS3140U

Part No OHS3140U
Manufacturer TT Electronics
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description MAGNETIC SWITCH UNIPOLAR TO92-3 / Digital Switch Unipolar Switch Open Collector Hall Effect TO-92-3
Datasheet
OHS3140U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr TT Electronics/Optek Technology
Series OHS3100
Package Bulk
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 27mT Trip, 2.5mT Release
Test Condition -40°C ~ 125°C
Voltage - Supply 4.5V ~ 24V
Current - Supply (Max) 7mA
Current - Output (Max) 25mA
Output Type Open Collector
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Through Hole
Supplier Device Package TO-92-3
Package / Case 3-SSIP
Base Product Number OHS3140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names 365-1003
Standard Package 1,000
Win Source Part Number 973258-OHS3140U
Ultra Librarian 3D Model Ultra Librarian OHS3140U CAD Model

Description

The OHS3100 series is a unipolar solid-state magnetic switch from TT Electronics/Optek Technology. It is designed to operate in harsh environments and can sense South Pole polarization.

  • Output Type: Open Collector
  • Sensing Range (Trip): 27mT
  • Sensing Range (Release): 2.5mT
  • Maximum Supply Current: 7mA
  • Maximum Output Current: 25mA
  • Operating Temperature Range: -40°C to 125°C
  • Package: Bulk
  • Package Type: 3-SSIP
  • Supplier Device Package: TO-92-3
