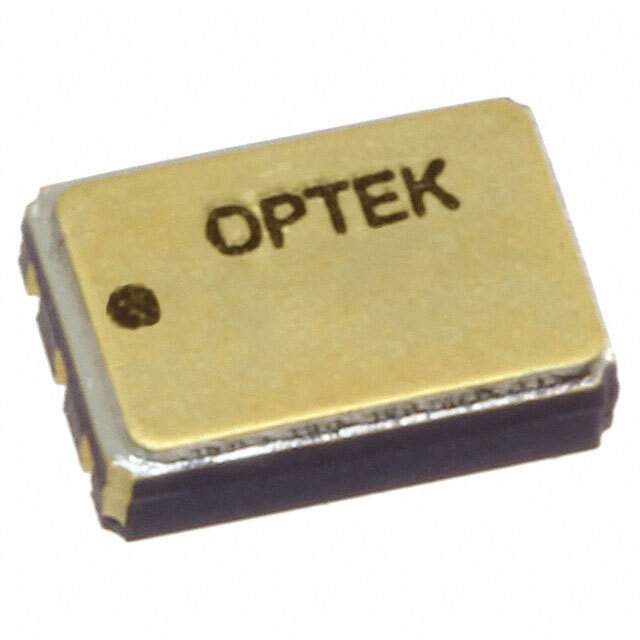

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Transistor Type NPN, PNP
Current - Collector (Ic) (Maximum) 600mA
Voltage - Collector Emitter Breakdown (Maximum) 40V
Vce Saturation (Maximum) at Ib, Ic 400mV at 15mA, 150mA
Current - Collector Cutoff (Maximum) 10nA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 100 at 150mA, 10V
Maximum Power 600mW
Temperature Range - Operating -65°C ~ 200°C
Mounting Style SMD
Manufacturer Package 6-CLCC
Supplier Device Package 6-CLCC
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123876-2N4854U
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2N4854U CAD Model

Description

The 2N4854U is an NPN and PNP transistor type electronic component manufactured by TT Electronics/Optek Technology.

  • Supplier Device Package: 6-CLCC
  • Supply: Limited
  • Win Source Part Number: 1123876-2N4854U
  • Maximum Power: 600mW
  • Vce Saturation (Maximum) @ Ib, Ic: 400mV @ 15mA, 150mA
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 100 @ 150mA, 10V
