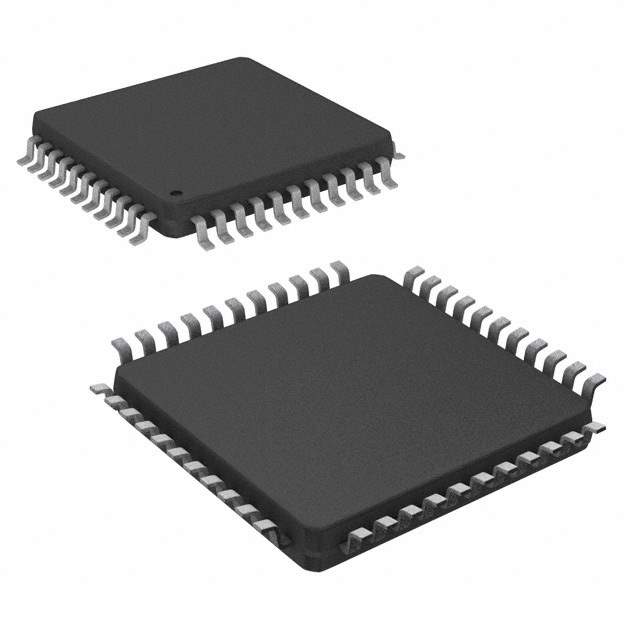

TMC246A-PA Real Image
Same model may have multiple batches, images only for reference.

TMC246A-PA

Part No TMC246A-PA
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description Microstep Driver for up to 1.5A with stall Guard™
Datasheet
TMC246A-PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Trinamic Motion Control GmbH
Series stallGuard
Packaging Tray
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI
Technology HVCMOS
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications General
Output Current 1.5A
Operating Supply Voltage 3 V ~ 5.5 V
Voltage - Load 7 V ~ 34 V
Operating Temperature Range -40°C ~ 140°C (TJ)
Mounting SMD
Package 44-LQFP
Manufacturer Package 44-PQFP (10x10)
Win Source Part Number 1270702-TMC246A-PA
Manufacturer Homepage www.trinamic.com
Family Name TMC246A-PA
Introduction Date August 10, 2011
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian TMC246A-PA CAD Model

Description

This electronic component is manufactured by Trinamic Motion Control GmbH and is part of their Integrated Circuits (ICs) category.

  • Win Source Part Number: 1270702-TMC246A-PA
  • Series: stallGuard
  • Function: Fully integrated driver with control and power stage functions
  • Interface: SPI
  • Output Configuration: Half bridge (4)
  • Operating Supply Voltage Range: 3V to 5.5V
  • Voltage-Load Range: 7V to 34V
  • Maximum Output Current: 1.5A
  • Applications: Motor drive and control
  • Supply and Demand Status: Limited
  • Popularity: High
  • Package: 44-LQFP
