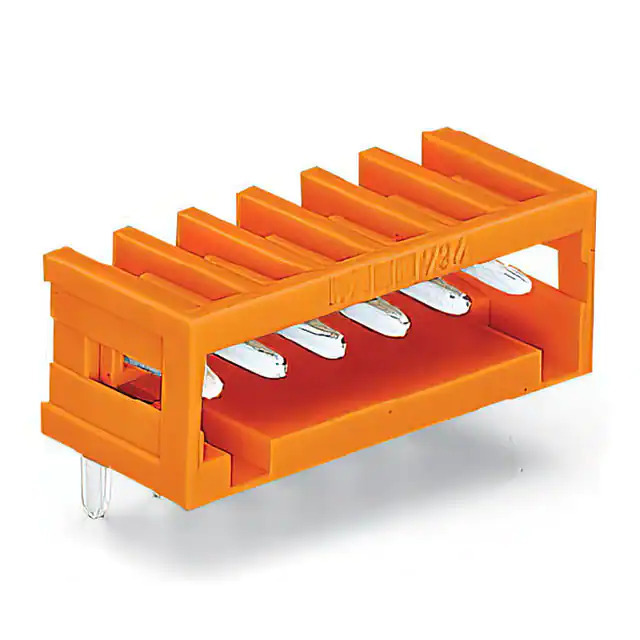

734-263 WAGO Corporation
Same model may have multiple batches, images only for reference.

734-263

Part No 734-263
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMINI
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Orange
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.150" (3.81mm)
Insulation Height 1.122" (28.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364624-734-263
Ultra Librarian 3D Model Ultra Librarian 734-263 CAD Model

Description

The WAGO Corporation MCSMINI series terminal block is a header with male pins and a shrouded design on all four sides.

  • Temperature Range: -60°C to 100°C
  • Current: 10A
  • Mounting: Through-Hole
  • Pitch: 0.150" (3.81mm)
  • Material: Polyamide (PA66)
  • Flammability Rating: UL94 V-0
  • Positions per Level: 3
  • Level: 1
  • Insulation Height: 1.122" (28.50mm)
  • Contact Material: Electrolytic Copper
  • Contact Finish: Tin
  • Status: Active
