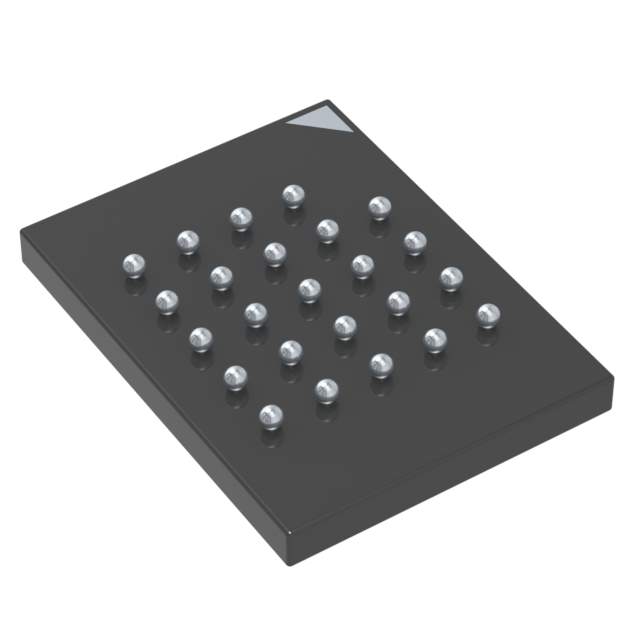

The N25Q064A11E12A0F is a 64 Mb (Megabit) Serial Flash Memory device manufactured by Micron Technology Inc. It belongs to the N25Q family, known for its high performance, reliability, and low power consumption, making it well-suited for diverse embedded systems. The part number specifies configuration, packaging, and temperature grade.

Applications

• Embedded Systems: Ideal for storing firmware, boot code, and configuration settings in embedded systems.
• Consumer Electronics: Commonly used in devices like smart TVs, gaming consoles, and set-top boxes for storing system software and user data.
• Industrial Automation: Found in industrial control systems, programmable logic controllers (PLCs), and human-machine interfaces (HMIs) for storing application code and configuration data.
• Networking Equipment: Used in routers, switches, and wireless access points for storing bootloaders and network configuration files.
• Automotive Systems: Can be utilized in automotive electronics, such as infotainment systems and instrument clusters, for storing firmware and configuration settings.

Features

• Memory Capacity: 64 Mb (8MB) of storage capacity.
• Interface: Serial Peripheral Interface (SPI) for straightforward integration with microcontrollers.
• Supply Voltage: Operates from a single 2.7V to 3.6V power supply.
• Page Programming: Supports page program operations for efficient data writing.
• Sector Erase: Offers sector erase functionality for flexible memory management.
• Block Erase: Provides block erase capability for efficient bulk data erasure.
• Security Features: Includes features like block protection to prevent unauthorized write access.
• Operating Temperature: Industrial temperature range ensures reliable operation in demanding environments.
• Quad SPI Support: Supports Quad SPI interface for higher data transfer rates.

Benefits

• High Performance: Delivers fast read, write, and erase speeds for responsive system behavior.
• Low Power Consumption: Reduces power consumption, making it suitable for battery-powered applications.
• Compact Footprint: Small package size allows for easy integration into space-constrained designs.
• Reliable Data Storage: Ensures data integrity and long-term data retention.
• Simplified Integration: SPI interface simplifies the connection to microcontrollers and host processors.
• Cost-Effective: Provides a cost-effective solution for non-volatile memory requirements.
• Enhanced Security: Protects against unauthorized data modification.

Additional Details

The N25Q064A11E12A0F is manufactured using advanced CMOS technology, contributing to its low power consumption and high reliability. It is available in various package options to cater to different application needs. The SPI interface supports multiple modes, including standard SPI, Dual SPI, and Quad SPI, enabling flexible data transfer rates. The device also features a deep power-down mode to minimize power consumption when not in use. Its combination of performance, reliability, and security makes it an excellent choice for various embedded applications requiring non-volatile memory.
