TMC2160-TA-T Trinamic Motion Control GmbH
Same model may have multiple batches, images only for reference.

TMC2160-TA-T

Part No TMC2160-TA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers

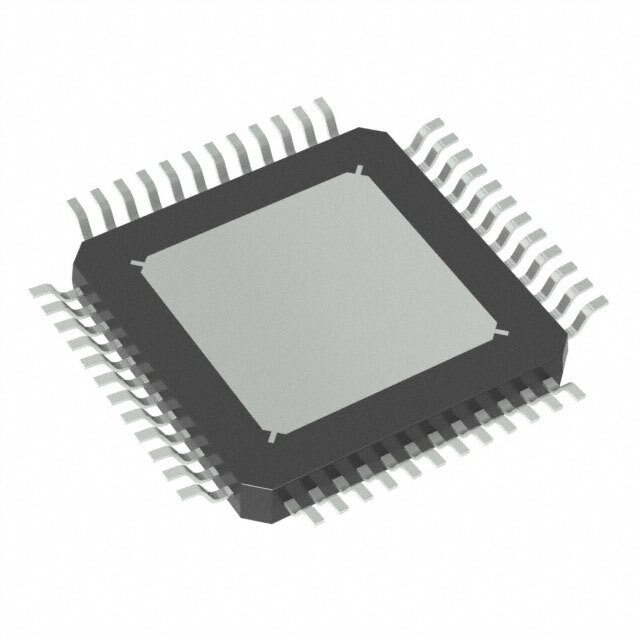

Description IC STEPPER MOTOR DRV SPI S/D / Bipolar Motor Driver Power MOSFET SPI, Step/Direction 48-TQFP-EP (7x7)
Datasheet
TMC2160-TA-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Series stallGuard™
Package Tape & Reel
Product Status Obsolete
Motor Type - Stepper Bipolar
Motor Type - AC, DC -
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface SPI, Step/Direction
Technology Power MOSFET
Step Resolution 1 ~ 1/256
Applications Automation Control, Industrial, Medical
Current - Output 20A
Voltage - Supply 10V ~ 50V
Voltage - Load 10V ~ 55V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 48-TQFP Exposed Pad
Supplier Device Package 48-TQFP-EP (7x7)
Base Product Number TMC2160
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354211-TMC2160-TA-T
Ultra Librarian 3D Model Ultra Librarian TMC2160-TA-T CAD Model

Description

The TMC2160-TA-T is a motor driver and controller IC from Trinamic Motion Control GmbH.

  • Temperature Range: -40°C to 125°C
  • MSL Level: 3 (168 hours)
  • Series: stallGuard™
  • Package: 48-TQFP exposed pad
  • Voltage Supply: 10V to 50V
  • Output Configuration: Half Bridge
  • Outputs: 4
  • Output Current: 20A
  • Interfaces: SPI, Step/Direction
