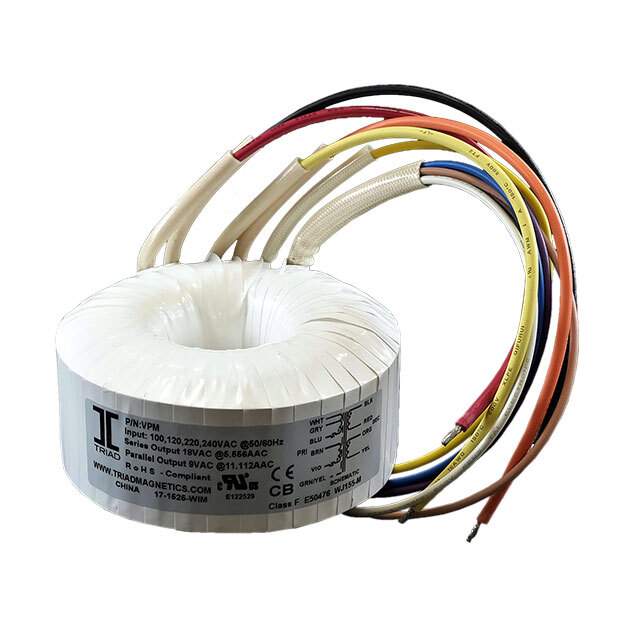

VPM36-1390 Real Image
Same model may have multiple batches, images only for reference.

VPM36-1390

Part No VPM36-1390
Manufacturer Triad Magnetics
Catalog Power Transformers
Description PWR XFMR TORO 50VA CHAS MT /
Datasheet
VPM36-1390 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Triad Magnetics
Series Toroidal Medical, VPM
Package Box
Type Toroidal
Voltage - Primary 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) Parallel 18V, Series 36V
Current - Output (Max) Parallel 2.78A, Series 1.39A
Primary Winding(s) Dual, Multiple Taps
Secondary Winding(s) Dual
Center Tap No
Power - Max 50VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Dimension 92.00mm Dia
Height - Seated (Max) 38.00mm
Voltage - Isolation 4000Vrms
Weight 1.1 lbs (499 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names 237-2034
Standard Package 1
Win Source Part Number 1215548-VPM36-1390
Ultra Librarian 3D Model Ultra Librarian VPM36-1390 CAD Model

Description

The VPM36-1390 is a toroidal medical power transformer from Triad Magnetics.

  • Maximum Power: 50VA
  • Weight: 1.1 lbs (499 g)
  • Voltage Isolation: 4000Vrms
  • Primary Voltage: 100V, 120V, 220V, and 240V
  • Current Output (Parallel): 2.78A
  • Current Output (Series): 1.39A
  • Secondary Voltage (Parallel): 18V
  • Secondary Voltage (Series): 36V
  • Primary Windings: dual primary windings with multiple taps
  • Secondary Windings: dual secondary windings
  • Mount: chassis mount
  • Dimension: 92.00mm Dia.
  • Application: power transformers
