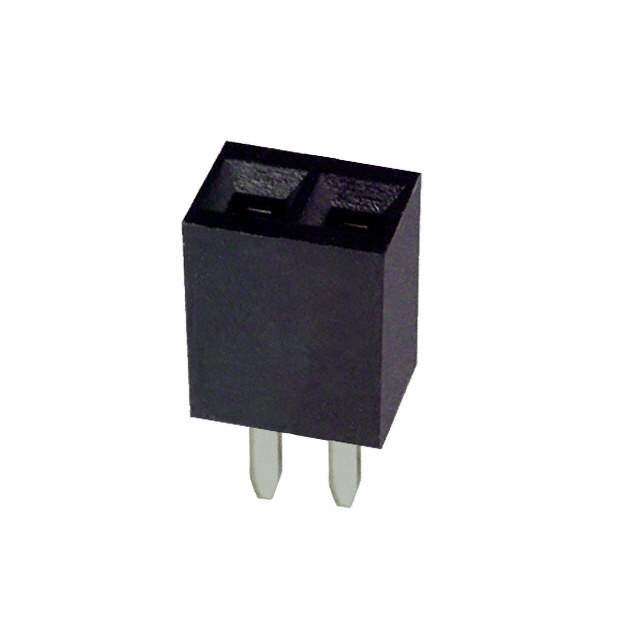

Same model may have multiple batches, images only for reference.

PPTC021LFBN-RC

Name: PPTC021LFBN-RC
Brand: Sullins Connector Solutions
SKU: 996128
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PPTC021LFBN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 2POS 0.1 TIN PCB / 2 Position Header Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	PPTC021LFBN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Package	Tray
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	2
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Voltage Rating	250V
Insulation Material	Polyester
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	PPTC021
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	PPTC021LFBNRC,S7000
Standard Package	1
Win Source Part Number	996128-PPTC021LFBN-RC
Ultra Librarian 3D Model	Ultra Librarian PPTC021LFBN-RC CAD Model

Alternative Products

Description

The Sullins Connector Solutions PPTC021LFBN-RC is a rectangular connector that belongs to the connectors and interconnects category of electronic components.

Connector Type: Header
Number of Positions: 2
Gender: Female Sockets
Contact Material: Phosphor Bronze
Voltage Rating: 250V
Connector Style: Board-to-Board
Pitch-Mating: 0.100" (2.54mm)
Mounting Type: Through Hole
Temperature Range: -40°C to 105°C
