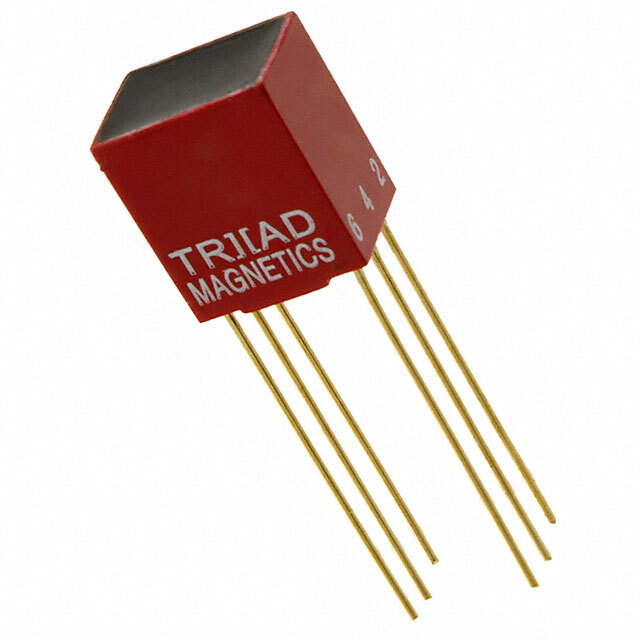

SP-20

Part No SP-20
Manufacturer Triad Magnetics
Catalog Audio Transformers
Description AUDIO XFMR 10KCT / 1.2KCT TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Turns Ratio - Primary 2.88:1
Impedance - Primary (Ohms) 10kCT
Impedance - Secondary (Ohms) 1.2kCT
DC Resistance (DCR) - Primary 1.05kOhm
DC Resistance (DCR) - Secondary 200Ohm
Transformer Type Audio Coupling
Frequency Range 300Hz ~ 100kHz
Frequency Response ±2dB
Voltage - Isolation 1000VRMS @ 1 Second
Power Level 50mW
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Size / Dimension 0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max) 0.465" (11.80mm)
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1511137-SP-20
Ultra Librarian 3D Model Ultra Librarian SP-20 CAD Model
