Same model may have multiple batches, images only for reference.

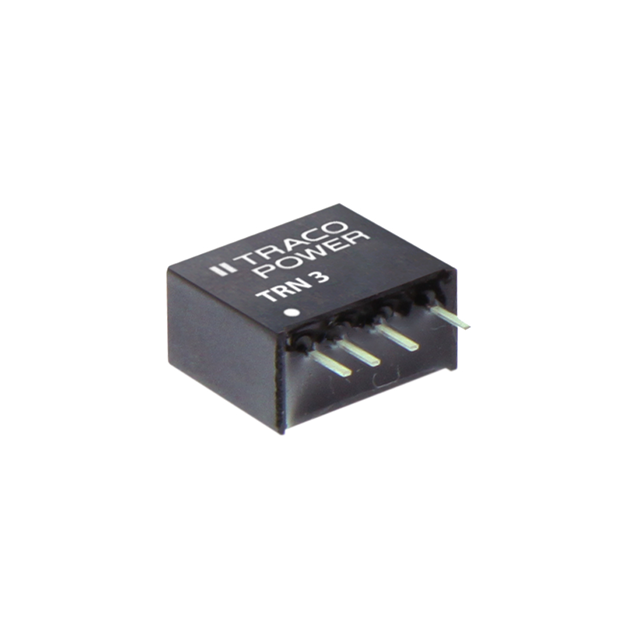

TRN 3-4822 Real Image
Same model may have multiple batches, images only for reference.

TRN 3-4822

Part No TRN 3-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet
TRN 3-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Through Hole
Case / Package 5-SIP Module
Size / Dimension 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TRN 3-4822-ND,2266-TRN 3-4822,TRN3-4822
Standard Package 10
Win Source Part Number 1336379-TRN 3-4822
Ultra Librarian 3D Model Ultra Librarian TRN 3-4822 CAD Model

Description

The Traco Power TRN 3-4822 is an isolated module DC-DC converter that has a power output of 3W.

  • Power Output: 3W
  • Voltage Isolation: 1.6 kV
  • Current Output (Output 1 and Output 2): 125mA
  • Input Voltage: 36V to 75V
  • Output Voltage: 12V and -12V
  • Protection: Short circuit protection
  • Package: Tube
  • Temperature Range: -40°C to 85°C
  • Case/Package: 5-SIP module
  • Compliance: ROHS3 compliant
