Same model may have multiple batches, images only for reference.

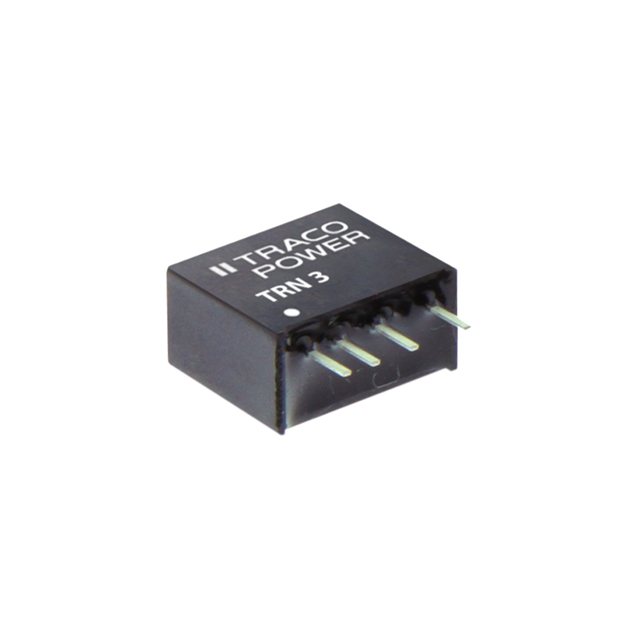

TRN 3-1223 Real Image
Same model may have multiple batches, images only for reference.

TRN 3-1223

Part No TRN 3-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 18V Input
Datasheet
TRN 3-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Through Hole
Case / Package 5-SIP Module
Size / Dimension 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Base Product Number TRN 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TRN 3-1223,TRN 3-1223-ND,TRN3-1223
Standard Package 10
Win Source Part Number 1336373-TRN 3-1223
Ultra Librarian 3D Model Ultra Librarian TRN 3-1223 CAD Model

Description

The Traco Power TRN 3-1223 isolated module DC-DC converter is packaged in a tube and has a power output of 3 W.

  • Power Output: 3 W
  • Outputs: Two
  • Current Output: 100mA, 100mA
  • Efficiency: 81%
  • Input Voltage Range: 9V to 18V
  • Isolation Voltage: 1.6 kV
  • Application: ITE (Commercial)
  • Mounting: Through-hole
  • Operating Temperature Range: -40°C to 85°C
  • Case Package: 5-SIP module
  • Compliance: ROHS3 compliant
  • REACH Regulations: Not affected by REACH regulations
