Same model may have multiple batches, images only for reference.

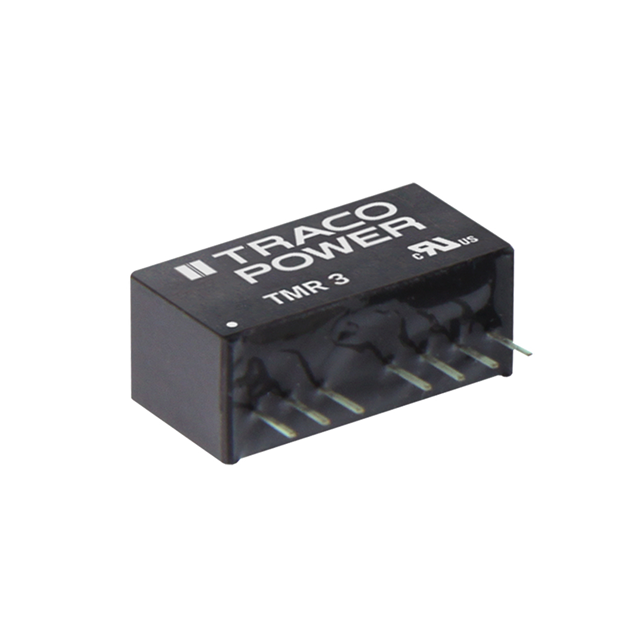

TMR 3-0523 Real Image
Same model may have multiple batches, images only for reference.

TMR 3-0523

Part No TMR 3-0523
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 9V Input
Datasheet
TMR 3-0523 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TMR 3 (3W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Base Product Number TMR 3
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2363
Standard Package 10
Win Source Part Number 1229476-TMR 3-0523
Ultra Librarian 3D Model Ultra Librarian TMR 3-0523 CAD Model

Description

This electronic component is a product of Traco Power.

  • Win Source Part Number: 1229476-TMR 3-0523
  • Series: TMR 3 (3W)
  • Type: isolated module
  • Remote On/Off: yes
  • SCP: yes
  • Standard Package: 10
  • Power Output: 3 W
  • Outputs: 2
  • Maximum Output Current: 100mA
  • Voltage Isolation: 1.6 kV
  • Input Voltage: 4.5V to 9V
  • RoHS Compliant: yes
  • Mounting: through-hole
