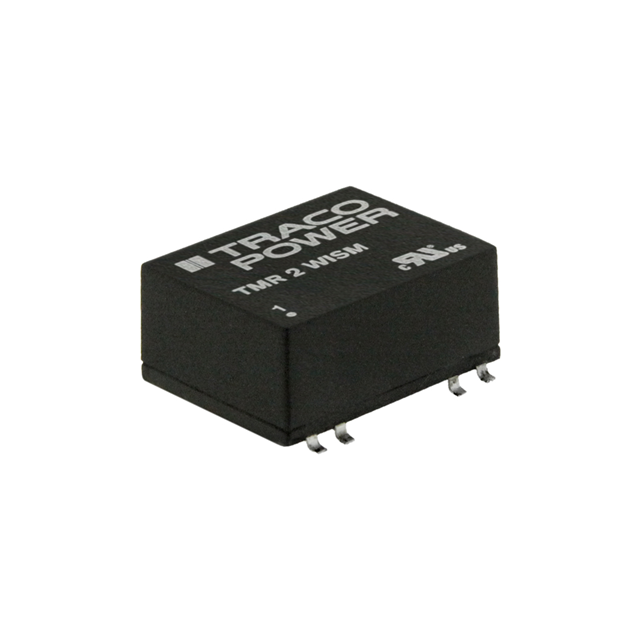

TMR 2-4822WISM Real Image
Same model may have multiple batches, images only for reference.

TMR 2-4822WISM

Part No TMR 2-4822WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 18V - 75V Input
Datasheet
TMR 2-4822WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 82%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR 2-4822WISM-ND,TMR2-4822WISM
Standard Package 10
Win Source Part Number 1336167-TMR 2-4822WISM
Ultra Librarian 3D Model Ultra Librarian TMR 2-4822WISM CAD Model

Description

This Isolated Module DC-DC Converter is manufactured by Traco Power.

  • Outputs: Two
  • Power Rating: 2 watts
  • Voltage Isolation: 1.5 kV
  • Mounting Type: Surface mount
  • Voltage Input Range: 18V to 75V
  • Temperature Range: -40°C to 80°C (with derating)
  • Features: Remote On/Off and SCP
  • Efficiency: 82%
  • Package: 14-SMD module, 7 leads case
  • RoHS3: Compliant
  • ECCN: EAR99
  • Application: Commercial ITE applications
