Same model may have multiple batches, images only for reference.

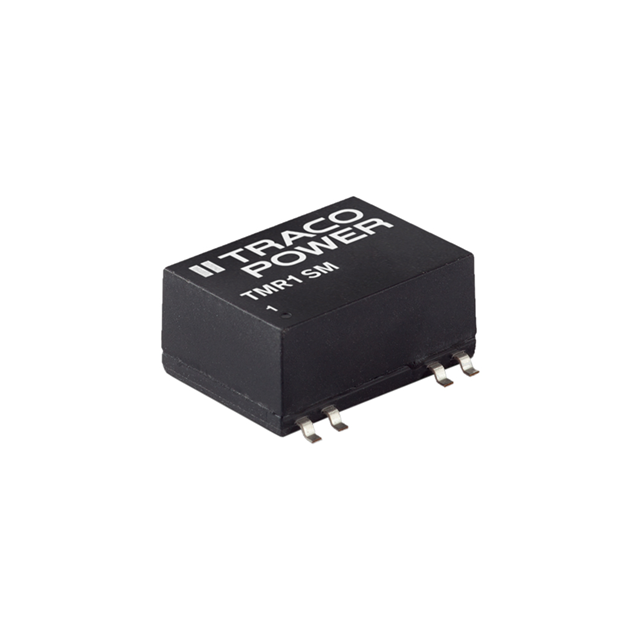

TMR 1-4822SM Real Image
Same model may have multiple batches, images only for reference.

TMR 1-4822SM

Part No TMR 1-4822SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 36V - 75V Input
Datasheet
TMR 1-4822SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 82°C (With Derating)
Efficiency 81%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR1-4822SM,TMR 1-4822SM-ND
Standard Package 10
Win Source Part Number 1336137-TMR 1-4822SM
Ultra Librarian 3D Model Ultra Librarian TMR 1-4822SM CAD Model

Description

The Traco Power TMR 1-4822SM is a 1W isolated DC-DC converter module with dual outputs.

  • Input Voltage Range: 36V to 75V
  • Outputs: 12V and -12V
  • Maximum Output Current: 42mA each
  • Features: Remote on/off, OCP, and SCP functions
  • Application: ITE (Commercial)
  • Package: 14-SMD module with 7 leads
