Same model may have multiple batches, images only for reference.

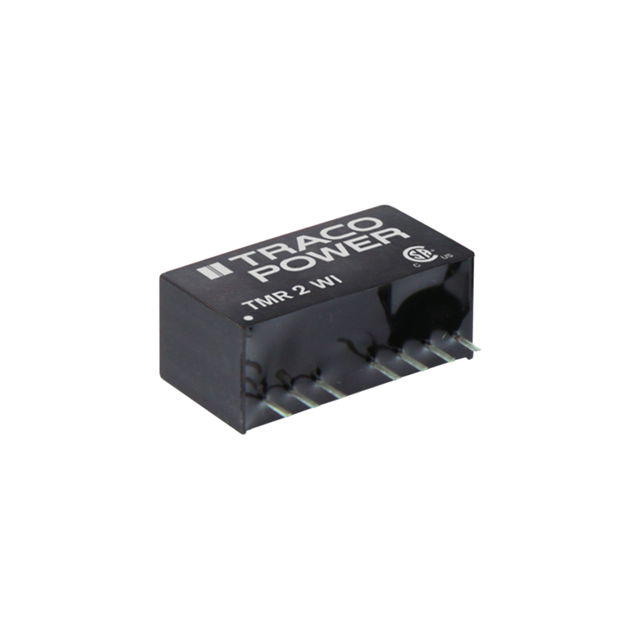

TMR 2-2423WI Real Image
Same model may have multiple batches, images only for reference.

TMR 2-2423WI

Part No TMR 2-2423WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 65mA, 65mA 9V - 36V Input
Datasheet
TMR 2-2423WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 65mA, 65mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 79%
Mounting Through Hole
Case / Package 9-SIP Module, 7 Leads
Size / Dimension 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2355
Standard Package 10
Win Source Part Number 1336159-TMR 2-2423WI
Ultra Librarian 3D Model Ultra Librarian TMR 2-2423WI CAD Model

Description

This isolated module electronic component is manufactured by Traco Power.

  • Type: DC DC converter
  • Power Rating: 2W
  • Efficiency: 79 percent
  • Outputs: Two
  • Maximum Output Current: 65mA each
  • Voltage Isolation: 1.5 kV
  • Input Voltage Range: 9V to 36V
  • Temperature Range: -40°C to 85°C with derating
