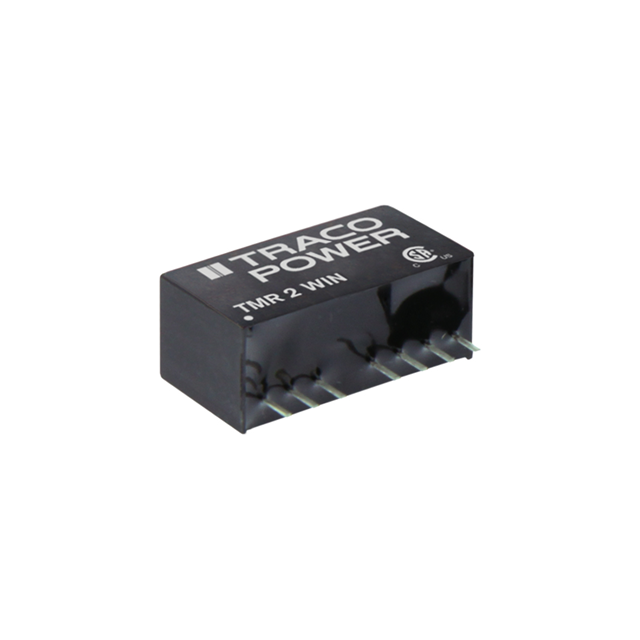

Same model may have multiple batches, images only for reference.

TMR 2-2421WIN

Name: TMR 2-2421WIN
Brand: Traco Power
SKU: 1336147
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TMR 2-2421WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 9V - 36V Input
Datasheet	TMR 2-2421WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	200mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	80%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number	TMR 2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR2-2421WIN-ND,1951-3191,TMR 2-2421WIN-ND,TMR2-2421WIN
Standard Package	10
Win Source Part Number	1336147-TMR 2-2421WIN
Ultra Librarian 3D Model	Ultra Librarian TMR 2-2421WIN CAD Model

Alternative Products

Description

The Traco Power TMR 2-2421WIN is a DC-DC converter with an isolated module type and 2 outputs.

Mounting Type: Through-hole
Package Size: 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Application: ITE (Commercial)
Power: 2W
Voltage Isolation: 1.5 kV
Features: Remote on/off, OCP, SCP protection
Input Voltage Range: 9V to 36V
Output Voltage: 5V and -5V
Operating Temperature Range: -40°C ~ 90°C (with derating)
Compliance: RoHS3 compliant
ECCN: EAR99
