Same model may have multiple batches, images only for reference.

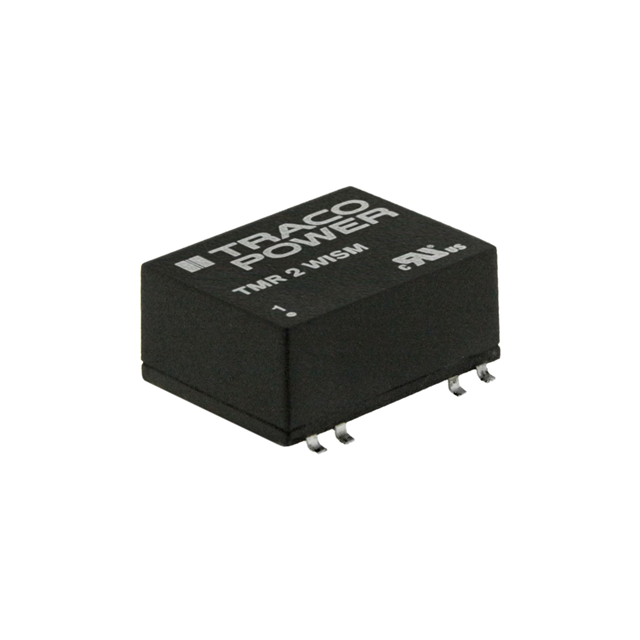

TMR 2-0522WISM Real Image
Same model may have multiple batches, images only for reference.

TMR 2-0522WISM

Part No TMR 2-0522WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 4.5V - 12V Input
Datasheet
TMR 2-0522WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 12V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 83%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR 2-0522WISM-ND,TMR2-0522WISM
Standard Package 10
Win Source Part Number 1336155-TMR 2-0522WISM
Ultra Librarian 3D Model Ultra Librarian TMR 2-0522WISM CAD Model

Description

The TMR 2-0522WISM is an isolated module DC DC converter manufactured by Traco Power.

  • Type: Power supply board mount
  • Packaging: Tube
  • Mounting: Surface mount
  • Features: Remote on/off, SCP
  • Size Dimension: 0.75" L x 0.59" W x 0.34" H (19.0mm x 14.9mm x 8.7mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Power: 2W
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current: 83mA each
  • Input Voltage: 4.5V to 12V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 83%
  • Temperature Range: -40°C ~ 80°C (With Derating)
