Same model may have multiple batches, images only for reference.

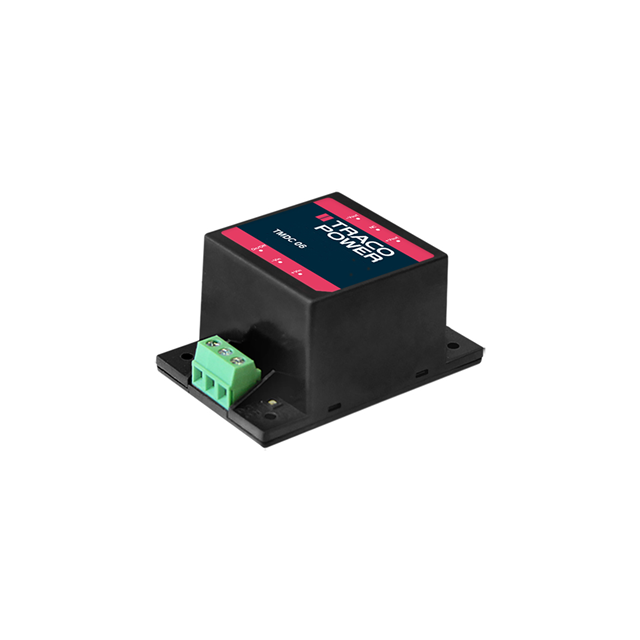

TMDC 06-2423 Real Image
Same model may have multiple batches, images only for reference.

TMDC 06-2423

Part No TMDC 06-2423
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER +/-15V 6W / Enclosed DC DC Converter 2 Output 15V -15V 200mA, 200mA 36V Input
Datasheet
TMDC 06-2423 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr Traco Power
Series TMDC 06 (6W)
Package Tube
Type Enclosed
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Number of Outputs 2
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 200mA, 200mA
Power (Watts) 6W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Efficiency 85%
Temperature Range - Operating -40°C ~ 92.5°C (With Derating)
Mounting Type Chassis Mount
Dimension 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm)
Approval Agency CB, CE, cURus
Base Product Number TMDC 06
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TMDC06-2423,1951-3340,TMDC06-2423-ND
Standard Package 10
Win Source Part Number 1100416-TMDC 06-2423
Ultra Librarian 3D Model Ultra Librarian TMDC 06-2423 CAD Model

Description

The Traco Power TMDC 06-2423 is a DC DC converter used in ITE (Commercial) applications.

  • Type: Enclosed
  • Package: Tube
  • Power: 6W
  • Voltage Isolation: 3 kV
  • Outputs: Two
  • Maximum Current Output: 200mA, 200mA
  • Voltage Output: 15V and -15V
  • Efficiency: 85%
  • Mount Type: Chassis mount
  • Temperature Range: -40°C ~ 92.5°C (With Derating)
  • Dimensions: 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm)
  • Alternative Part Cross-Reference: TMDC 06-2423TMDC06-2423
  • Approvals: CB, CE, and cURus
  • Category: Power Supplies - External/Internal (Off-Board)>DC DC Converters
