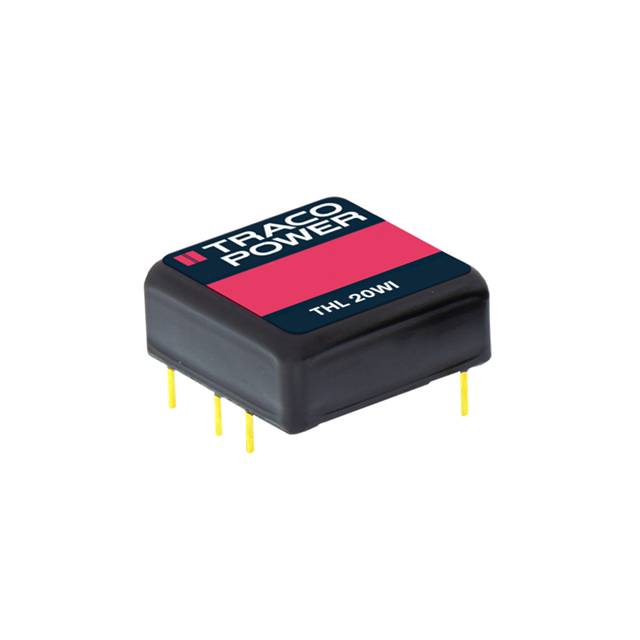

Same model may have multiple batches, images only for reference.

THL 20-2422WI

Name: THL 20-2422WI
Brand: Traco Power
SKU: 1335943
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THL 20-2422WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 20W / Isolated Module DC DC Converter 2 Output 12V -12V 835mA, 835mA 9V - 36V Input
Datasheet	THL 20-2422WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	835mA, 835mA
Power (Watts)	20 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Base Product Number	THL 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THL 20-2422WI-ND,THL20-2422WI,THL20-2422WI-ND,1951-3102
Standard Package	10
Win Source Part Number	1335943-THL 20-2422WI
Ultra Librarian 3D Model	Ultra Librarian THL 20-2422WI CAD Model

Alternative Products

Description

The Traco Power THL 20-2422WI is a DC-DC converter that is designed to be mounted on a board.

Type: Isolated module
Packaging: Tube
Application: ITE (Commercial)
Standard Package: 10
Mounting: Through hole
Power: 20 watts
Voltage Isolation: 1.5 kV
Number of Outputs: 2
Maximum Output Current: 835mA for each output
Input Voltage: 9V to 36V
Output Voltage: 12V and -12V
Efficiency: 89%
Operating Temperature: -40°C to 75°C (With Derating)
Package: 6-DIP module
ROHS3 Compliant: Yes
