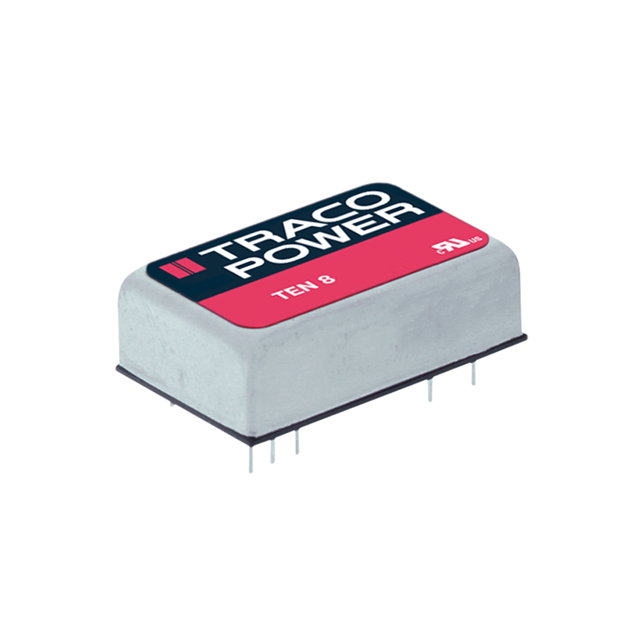

TEN 8-4823 Real Image
Same model may have multiple batches, images only for reference.

TEN 8-4823

Part No TEN 8-4823
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 8W / Isolated Module DC DC Converter 2 Output 15V -15V 265mA, 265mA 36V - 75V Input
Datasheet
TEN 8-4823 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 265mA, 265mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TEN 8-4823,1951-2231
Standard Package 10
Win Source Part Number 1335874-TEN 8-4823
Ultra Librarian 3D Model Ultra Librarian TEN 8-4823 CAD Model

Description

The Isolated Module DC DC Converter from Traco Power is a high-quality power supply for board mount applications.

  • Packaging: Tube packaging
  • Type: Isolated
  • Features: Remote on/off, OCP, and SCP
  • Size/Dimension: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
  • Suitable for: ITE (Commercial) applications
  • Standard Package: 10
  • Mounting: Through hole
  • Power: 8 W
  • Voltage Isolation: 1.5 kV
  • Outputs: 2 outputs
  • Current Output: 265mA and 265mA
  • Voltage Input: 36V - 75V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Voltage Output 3: Not applicable
  • Efficiency: 87%
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • RoHS3 Compliant: Yes
