Same model may have multiple batches, images only for reference.

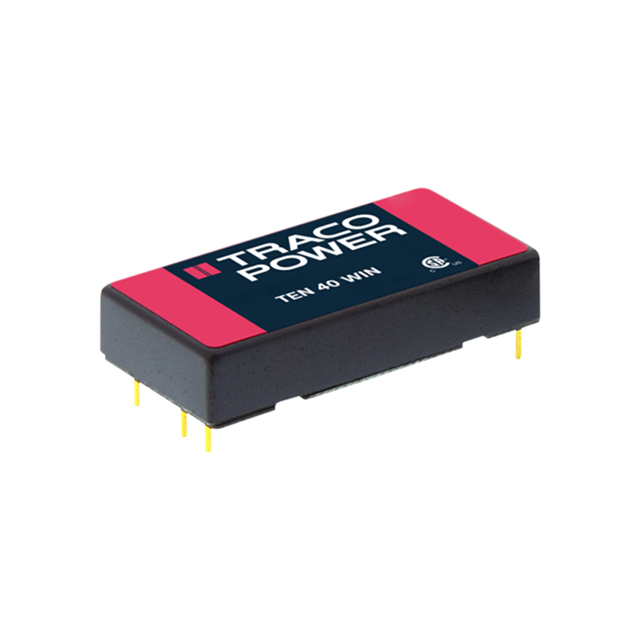

TEN 40-2423WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 40-2423WIN

Part No TEN 40-2423WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 40W / Isolated Module DC DC Converter 2 Output 15V -15V 1.33A, 1.33A 9V - 36V Input
Datasheet
TEN 40-2423WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 1.33A, 1.33A
Power (Watts) 40 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 88%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.43" H (50.8mm x 25.4mm x 11.0mm)
Base Product Number TEN 40
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN40-2423WIN,TEN 40-2423WIN-ND
Standard Package 10
Win Source Part Number 1335763-TEN 40-2423WIN
Ultra Librarian 3D Model Ultra Librarian TEN 40-2423WIN CAD Model

Description

The Traco Power TEN 40-2423WIN is a DC-DC converter module that comes in a 6-DIP package.

  • Package: 6-DIP
  • Module Type: Isolated
  • Features: Remote on/off, OVP, and SCP
  • Power Output: 40W
  • Voltage Isolation: 1.5kV
  • Number of Outputs: 2
  • Maximum Output Current: 1.33A each
  • Input Voltage Range: 9V to 36V
  • Output Voltage: 15V and -15V
  • Efficiency: 88%
  • Operating Temperature: -40°C to 75°C with derating
  • Application: ITE (Commercial)
  • ROHS Compliance: ROHS3 compliant
