Same model may have multiple batches, images only for reference.

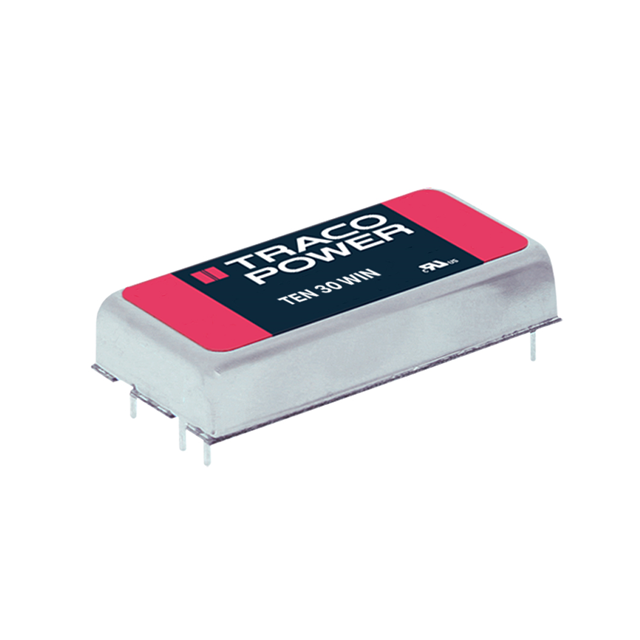

TEN 30-2422WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 30-2422WIN

Part No TEN 30-2422WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 9V - 36V Input
Datasheet
TEN 30-2422WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 7-DIP Module, 6 Leads
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2148,7613441009872
Standard Package 10
Win Source Part Number 1335688-TEN 30-2422WIN
Ultra Librarian 3D Model Ultra Librarian TEN 30-2422WIN CAD Model

Description

The Traco Power TEN 30-2422WIN is a DC-DC converter module with 2 outputs, offering 1.25A and 1.25A current output.

  • Input Voltage: ranging from 9V to 36V
  • Output Voltages: 12V and -12V
  • Type: isolated module
  • Voltage Isolation: 1.5 kV
  • Protection Features: remote on/off, OCP, OTP, OVP, SCP, and UVLO
  • Efficiency: 87%
  • Applications: ITE (Commercial) applications
  • Package: 7-DIP module, 6 leads
  • Temperature Range: -40°C to 75°C (with derating)
  • Compliance: ROHS3 compliant
  • REACH: unaffected
