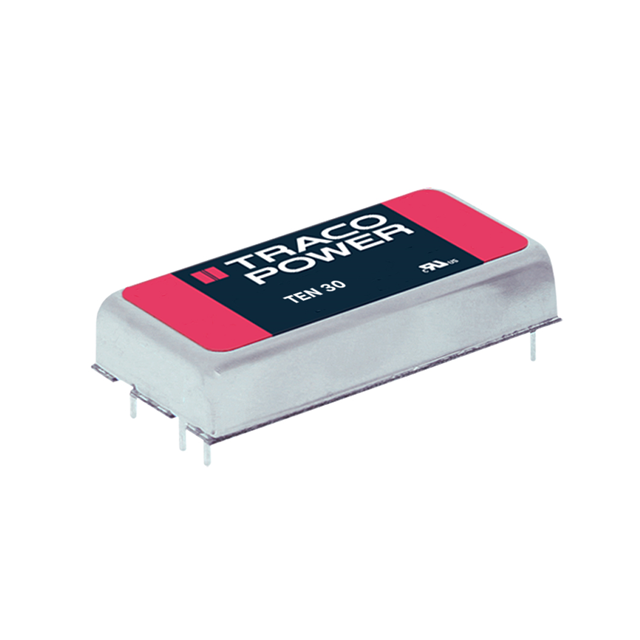

TEN 30-1222 Real Image
Same model may have multiple batches, images only for reference.

TEN 30-1222

Part No TEN 30-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 9V - 18V Input
Datasheet
TEN 30-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package Module
Base Product Number TEN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN 30-1222-ND,TEN30-1222
Standard Package 10
Win Source Part Number 1335681-TEN 30-1222
Ultra Librarian 3D Model Ultra Librarian TEN 30-1222 CAD Model

Description

This DC DC converter is manufactured by Traco Power and has a Win Source Part Number of 1335681-TEN 30-1222.

  • Converter Type: Power Supplies - Board Mount
  • Category: DC DC Converters
  • Power: 30W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 2
  • Current - Output (max): 1.25A, 1.25A
  • Voltage - Input (min): 9V
  • Voltage - Input (max): 18V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Efficiency: 87%
