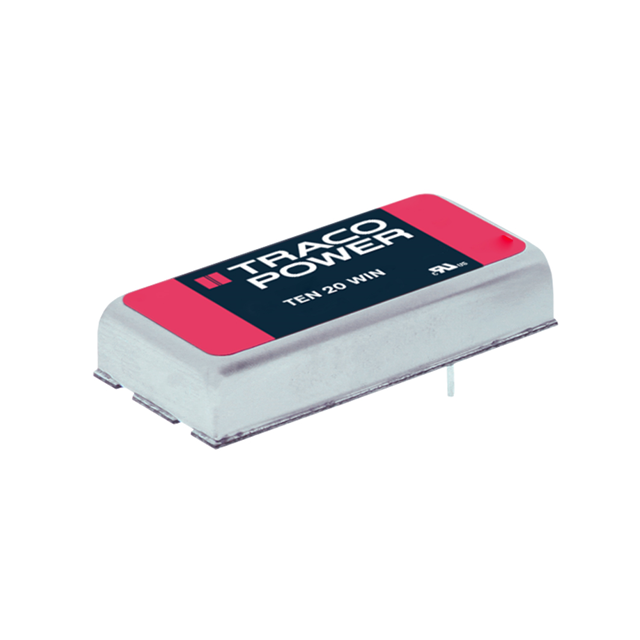

Same model may have multiple batches, images only for reference.

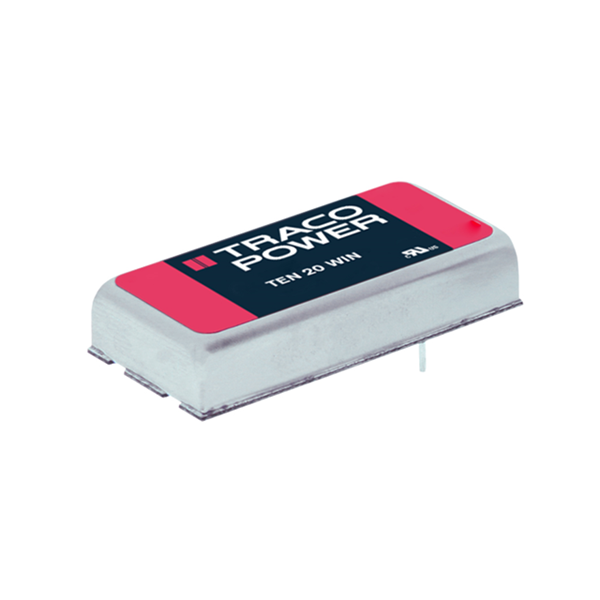

TEN 20-4821WIN Real Image
Same model may have multiple batches, images only for reference.

TEN 20-4821WIN

Part No TEN 20-4821WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 20W / Isolated Module DC DC Converter 2 Output 5V -5V 2A, 2A 18V - 75V Input
Datasheet
TEN 20-4821WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 2A, 2A
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2137
Standard Package 10
Win Source Part Number 1335674-TEN 20-4821WIN
Ultra Librarian 3D Model Ultra Librarian TEN 20-4821WIN CAD Model

Description

The Traco Power DC-DC Converter is an isolated module type power supply device that offers a power output of 20W.

  • Voltage Isolation: 1.5kV
  • Features: Remote on/off, OCP, OVP, and SCP
  • Package: 6-DIP module
  • Mounting: Through the hole
  • Maximum Output Current: 2A, 2A
  • Maximum Input Voltage: 75V
  • Efficiency: 89%
  • Temperature Range: -40°C to 85°C
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
