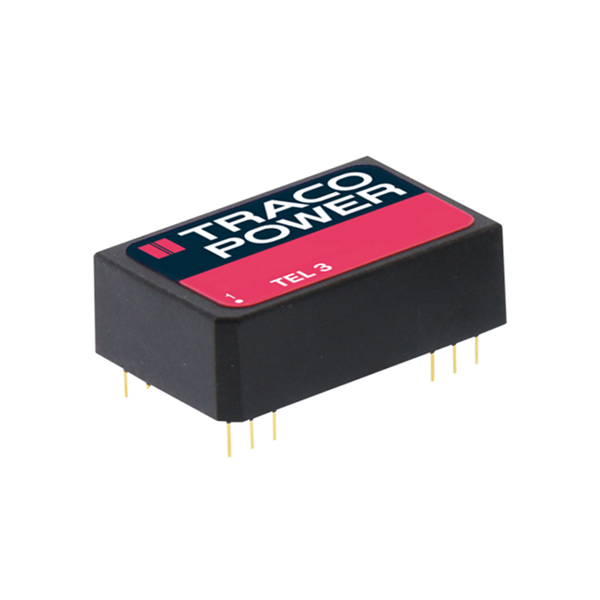

TEL 3-0523 Real Image
Same model may have multiple batches, images only for reference.

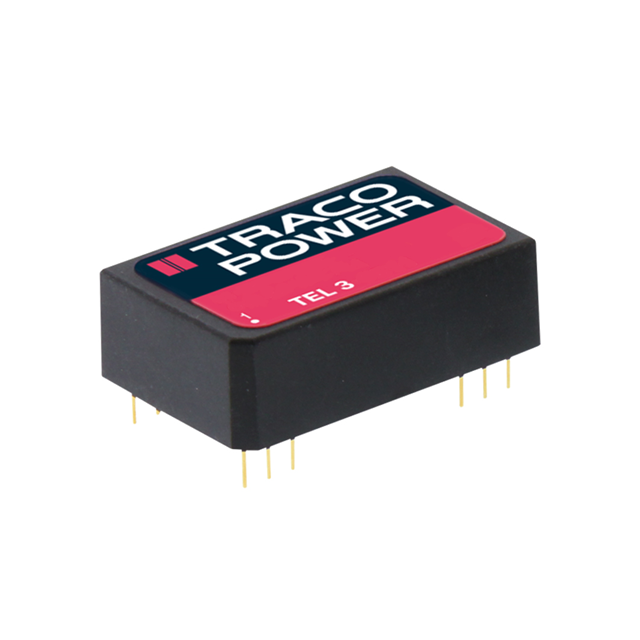

TEL 3-0523

Part No TEL 3-0523
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 9V Input
Datasheet
TEL 3-0523 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEL 3 (3W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 74%
Mounting Type Through Hole
Package / Case 24-DIP Module, 13 Leads
Dimension 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Base Product Number TEL 3
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2536
Standard Package 10
Win Source Part Number 1215832-TEL 3-0523
Ultra Librarian 3D Model Ultra Librarian TEL 3-0523 CAD Model

Description

The TEL 3-0523 is a 3W isolated module DC-DC converter from Traco Power.

  • Output: Two Outputs
  • Maximum Output Current: 100mA each
  • Input Voltage Range: 4.5V to 9V
  • Efficiency: 74%
  • Package: 24-DIP module
  • Leads: 13
  • Operating Temperature: -40°C to 85°C with derating
  • Status: Not for new designs
  • Win Source Part Number: 1215832
