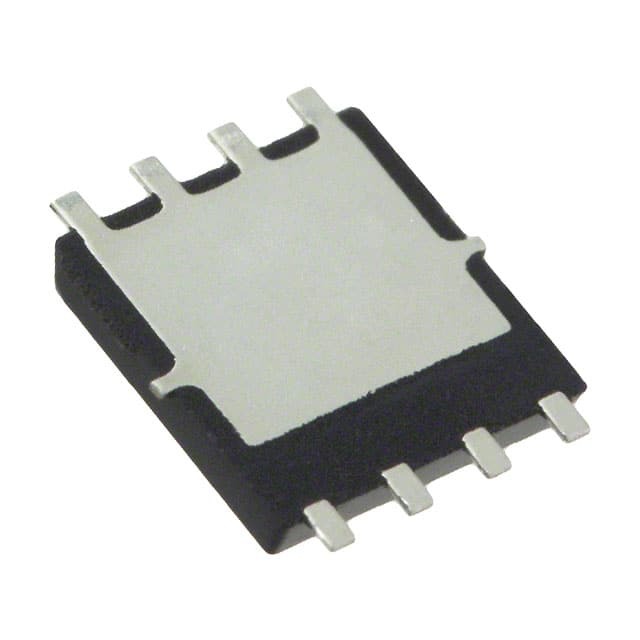

TPN5R203PL,LQ

Name: TPN5R203PL,LQ
Brand: Toshiba Semiconductor and Storage
SKU: 1100858
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TPN5R203PL,LQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 38A 8TSON / N-Channel 30 V 38A (Tc) 610mW (Ta), 61W (Tc) Surface Mount 8-TSON Advance (3.1x3.1)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.2mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	2.1V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1975 pF @ 15 V
Power Dissipation (Max)	610mW (Ta), 61W (Tc)
Temperature Range - Operating	175°C
Mounting	SMD (SMT)
Supplier Device Package	8-TSON Advance (3.1x3.1)
Package / Case	8-PowerVDFN
Base Product Number	TPN5R203
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	264-TPN5R203PLLQCT,264-TPN5R203PLLQDKR,264-TPN5R203PLLQTR,TPN5R203PL,LQ(S
Standard Package	3,000
Win Source Part Number	1100858-TPN5R203PL,LQ
Ultra Librarian 3D Model	Ultra Librarian TPN5R203PL,LQ CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TPN5R203PL,LQ is an N-channel MOSFET transistor with a drain to source voltage (Vdss) of 30V and a continuous drain current (Id) of 38A (Tc) @ 25°C.

Rds On (Max) @ Id, Vgs: 5.2mOhm @ 19A, 10V
Vgs(th) (Max) @ Id: 2.1V @ 200µA
Power Dissipation: 610mW (Ta), 61W (Tc)
Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1975 pF @ 15 V
Operating Temperature: 175°C
Standard Package: 3,000
Mounting Type: SMD (SMT)
