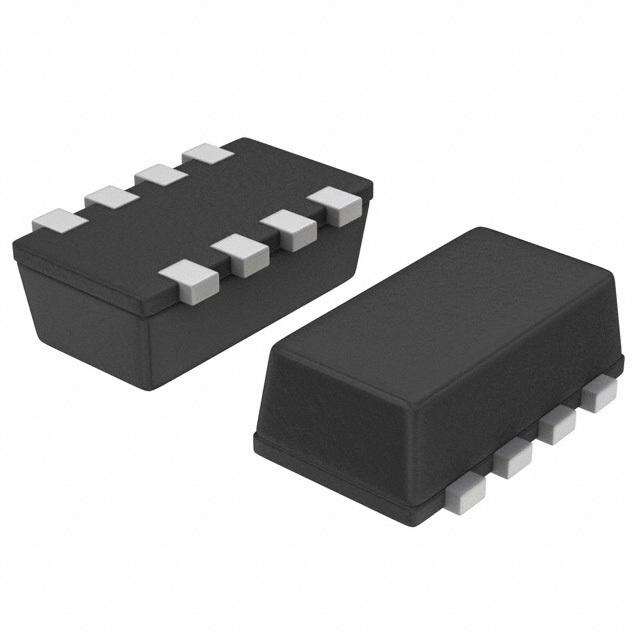

TPCF8302 Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TPCF8302

Part No TPCF8302
Manufacturer Toshiba Semiconductor and Storage
Catalog FETs - Arrays
Description MOSFET 2P-CH 20V 3A VS-8
Datasheet
TPCF8302 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Transistors - FETs, MOSFETs - Arrays
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 3A
Rds On (Max) @ Id, Vgs 59 mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id 1.2V @ 200μA
Gate Charge (Qg) @ Vgs 11nC @ 5V
Input Capacitance (Ciss) @ Vds 800pF @ 10V
Power - Max 330mW
Operating Temperature Range 150°C (TJ)
Mounting Style SMD/SMT
Package 8-SMD, Flat Lead
Manufacturer Device Package VS-8 (2.9x1.9)
Win Source Part Number 098763-TPCF8302
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TPCF8302 CAD Model

Description

The Toshiba Semiconductor and Storage transistor is a P-Channel (Dual) MOSFET with a maximum drain to source voltage of 20V and a continuous drain current of 3A @ 25°C.

  • Maximum Drain to Source Voltage: 20V
  • Continuous Drain Current: 3A @ 25°C
  • Maximum Rds On: 59 mOhm @ 1.5A, 4.5V
  • Gate Charge: 11nC @ 5V
  • Package: 8-SMD, flat lead package
  • Manufacturer Device Package: VS-8 (2.9x1.9)
  • Supply and Demand: Sufficient
