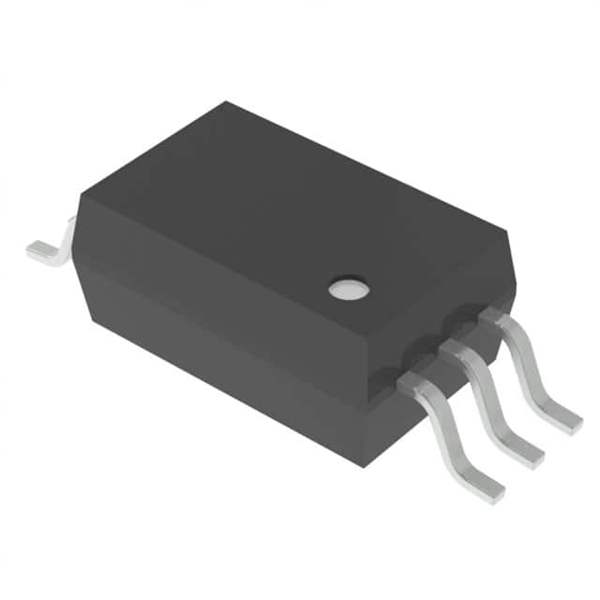

TLP2745(TP,E TLP2745(TP,E Real Image
Same model may have multiple batches, images only for reference.
TLP2745(TP,E TLP2745(TP,E Real Image
TLP2745(TP,E TLP2745(TP,E Real Image
Same model may have multiple batches, images only for reference.

TLP2745(TP,E

Part No TLP2745(TP,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV PUSH PULL SO6L / Logic Output Optoisolator Push-Pull, Totem Pole 5000Vrms 1 Channel 30kV/μs CMTI 6-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 30kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 50 mA
Propagation Delay tpLH / tpHL (Max) 120ns, 120ns
Rise / Fall Time (Typ) 3ns, 3ns
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 15mA
Voltage - Supply 4.5V ~ 30V
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Base Product Number TLP2745
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 900002-TLP2745(TP,E
Ultra Librarian 3D Model Ultra Librarian TLP2745(TP,E CAD Model

Description

The TLP2745(TP,E is an optoisolator logic output optoisolator in a 6-SOIC package.

  • Type: Optoisolator Logic Output
  • Package: 6-SOIC
  • Output Type: Push-Pull, Totem Pole
  • Data Rate: Up to 50 mA
  • Input Type: DC
  • Maximum Forward Current: 15mA
  • Forward Voltage: Typically 1.55V
  • Rise/Fall Time: 3ns
  • Voltage Isolation: 5000Vrms
  • Temperature Range: -40°C to 110°C
  • Mounting: Surface mountable
  • Packaging: Tape and reel
  • Manufacturer: Toshiba Semiconductor and Storage
  • Status: Active
