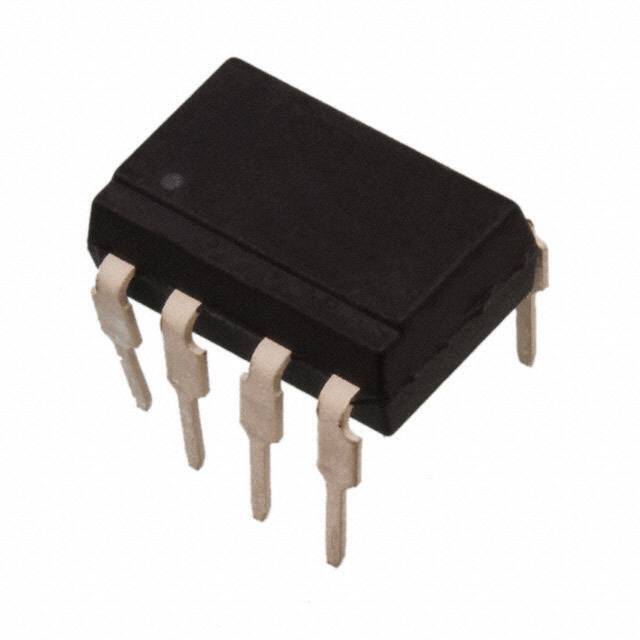

TLP521-3GB Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP521-3GB

Part No TLP521-3GB
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Transistor, Photovoltaic Output
Manufacturer Isocom Components 2004 LTD
Packaging Tube
Part Status Active
Number of Channels 2
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 55V
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 400mV
Operating Temperature Range -30°C ~ 100°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm)
Manufacturer Device Package 8-DIP
Win Source Part Number 218256-TLP521-3GB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLP521-3GB CAD Model

Description

The TLP521-3GB from Isocom Components 2004 LTD is a dual channel optoisolator with transistor output.

  • Voltage isolation: 5300Vrms
  • Forward voltage: 1.15V
  • Maximum forward current: 50mA
  • Maximum Vce saturation: 400mV
  • Rise/fall time: 4μs and 3μs respectively.
  • Package: through-hole 8-DIP package.
  • Operating temperature range: -30°C to 100°C
  • Ideal for: use in high voltage applications.
