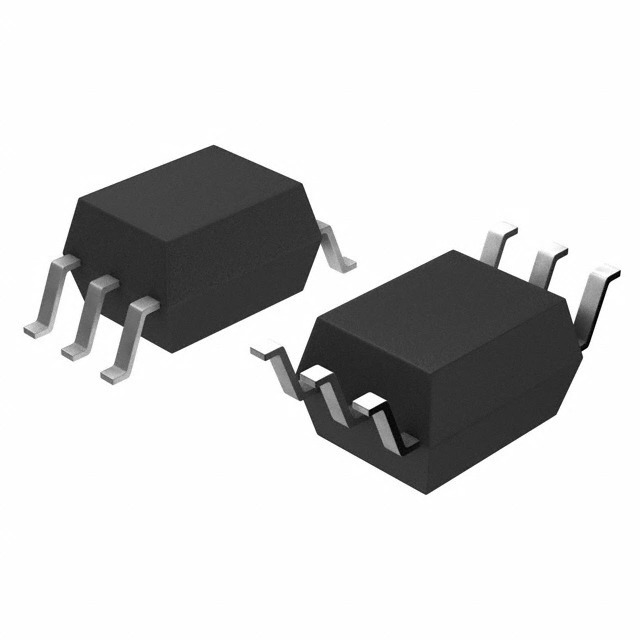

Same model may have multiple batches, images only for reference.
TLP3102(TP,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3102(TP,F)

Part No TLP3102(TP,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog HOT - SALES and EOL Components
Description SSR RELAY SPST-NO 2.5A 0-40V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel
Mounting Style SMD
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Parts Input Voltage (V) 1.33VDC
Load Voltage (V) 0V ~ 40V
Load Current 2.5A
On-State Resistance (Maximum) 60 mOhms
Termination Style Gull Wing
Manufacturer Package 6-SOP (0.173", 4.40mm)
Supplier Device Package 6-SOP (2.54mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 370363-TLP3102(TP,F)
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP3102(TP,F) CAD Model

Description

The TLP3102(TP,F) is a relay manufactured by Toshiba Semiconductor and Storage.

  • Circuit: SPST-NO (1 Form A)
  • Load Current: 2.5A
  • On-State Resistance (maximum): 60 mOhms
  • Load Voltage: 0V to 40V
  • Package: 6-SOP (0.173", 4.40mm)
  • Termination Style: Gull-Wing
  • Supply and Demand Status: Balanced
