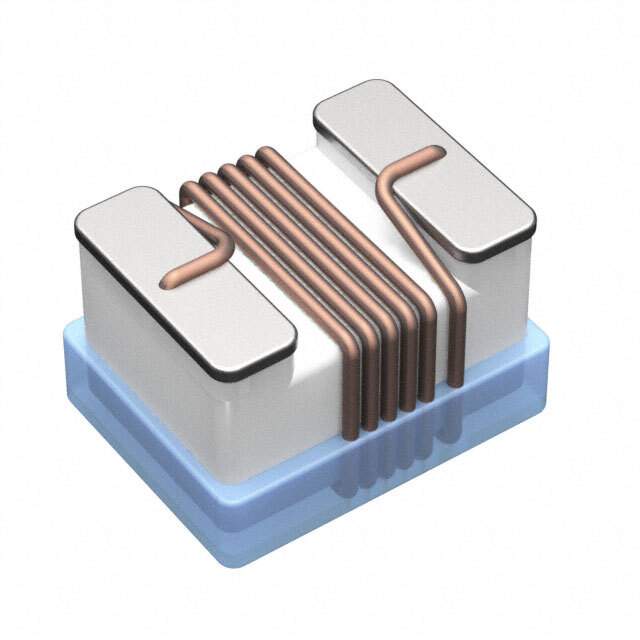

0805CT-223EKFS Real Image
Same model may have multiple batches, images only for reference.

0805CT-223EKFS

Part No 0805CT-223EKFS
Manufacturer Delta Electronics
Catalog HOT - SALES and EOL Components
Description Inductor RF Chip Wirewound 22uH 10% 7.96MHz 10Q-Factor Ferrite 0.25A 6Ohm DCR 0805 T/R / CHIP INDUCTOR 22.0UH10% 250MA 6.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Delta Electronics/Components
Packaging Tape and Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±10%
Current Rating (Amps) 250mA
Shielding Unshielded
DC Resistance (DCR) 6Ohm
Q at Freq 10 at 7.96MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.96MHz
Mounting Style SMD
Manufacturer Package 0805
Supplier Device Package 0805
Parts Dimension 0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 147301-0805CT-223EKFS
Popularity Low
Supply and Demand Status Balance
Family Name 0805CT
Introduction Date June 28, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 0805CT-223EKFS CAD Model

Description

0805CT-223EKFS Inductor

The 0805CT-223EKFS inductor is engineered for use in various high-frequency applications, providing low profile and enhanced performance in compact form.

  • Applications:
  • Wireless communication devices
  • Bluetooth modules
  • DC-DC converters
  • Notebooks and laptops
  • Features and Benefits:
  • 0805 SMT design for optimal PCB efficiency
  • Enhanced Q factor improving performance and energy efficiency
  • Low-resistance to minimize power consumption
  • High current handling capability

Designed to meet modern compliance standards, the 0805CT-223EKFS ensures reliable operation and longevity in various electronic environments.
