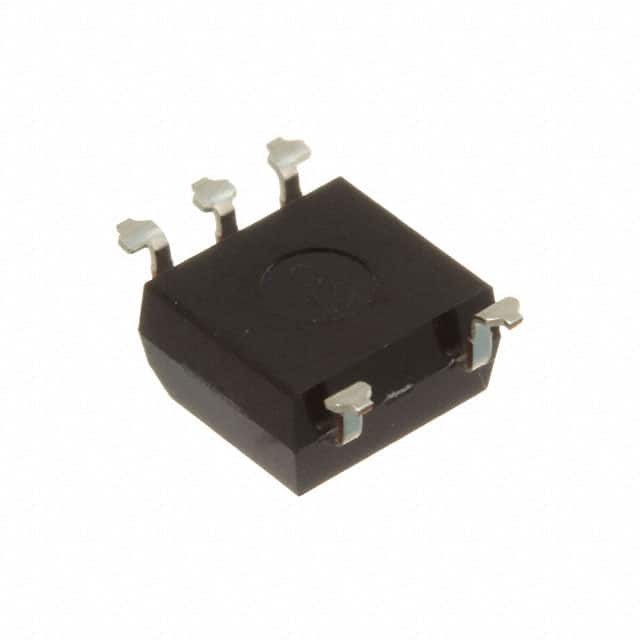

Same model may have multiple batches, images only for reference.
TLP3083(TP1,F Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3083(TP1,F

Part No TLP3083(TP1,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISO 5KV TRIAC 6SMD / Optoisolator Triac Output 5000Vrms 1 Channel 6-SO, 5 Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Triac, SCR Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 800 V
Static dV/dt (Min) 2kV/µs (Typ)
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 600µA (Typ)
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 100°C
Mounting SMD (SMT)
Package / Case 6-SMD (5 Leads), Gull Wing
Supplier Device Package 6-SO, 5 Lead
Approval Agency CQC, CSA, cUL, UL
Base Product Number TLP3083
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP3083(TP1FTR,TLP3083(TP1FDKR,TLP3083(LF1,F(O,TLP3083(TP1,F(O,TLP3083(TP1FCT
Standard Package 1,500
Win Source Part Number 1025372-TLP3083(TP1,F
Ultra Librarian 3D Model Ultra Librarian TLP3083(TP1,F CAD Model

Description

The Toshiba TLP3083(TP1,F is an optoisolator that is designed to be used in an array of electronic devices, such as computers, televisions, and other consumer electronics. It is a medium-popularity product with a balanced supply and demand status.

  • Type: Triac output type optoisolator
  • Voltage Isolation: 5000Vrms
  • Manufacturer: Toshiba Semiconductor and Storage
  • Category: Isolator
