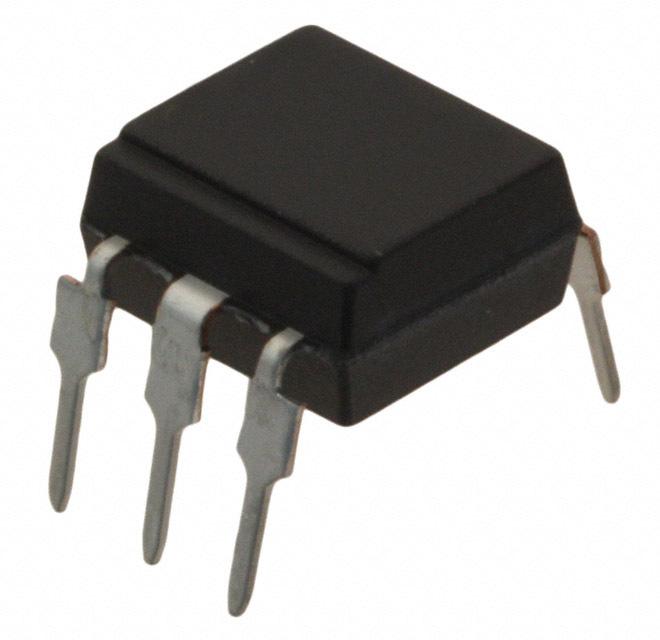

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 15mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals UR
Win Source Part Number 046550-S21MD3Y
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S21MD3Y CAD Model

Description

The Sharp Microelectronics 046550-S21MD3Y is a through hole triac output optocoupler with a forward voltage of 1.2V and voltage-off state of 600V.

  • Current-on State: 100mA (Max)
  • Isolation Voltage: 5000Vrms
  • Current-hold: 3.5mA
  • Turn-on Time: 100μs
  • Package: 6-DIP
  • Continuous Forward Current: 50mA (Max)
  • Forward Voltage: 1.2V
  • Voltage-Off State: 600V
  • Approvals: UR
  • Temperature Range: -30°C to 100°C
  • Status: Obsolete (EOL)
