Same model may have multiple batches, images only for reference.

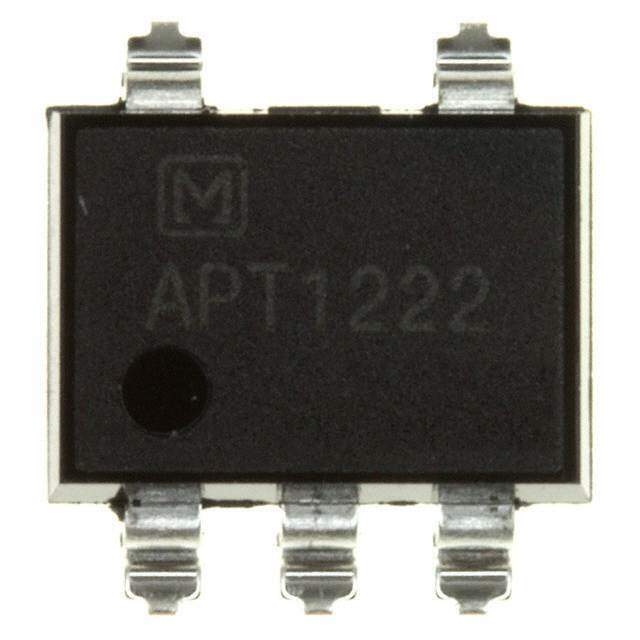

APT1222A Real Image
Same model may have multiple batches, images only for reference.

APT1222A

Part No APT1222A
Manufacturer Panasonic
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD
Datasheet
APT1222A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.21V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Approvals cUR, VDE
Win Source Part Number 123150-APT1222A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian APT1222A CAD Model

Description

Product Overview

The APT1222A stands out as an advanced electronic component tailored for cutting-edge applications. Its exceptional features ensure unparalleled performance in various projects.

  • Applications:
  • Data communication networks
  • Telecom infrastructure
  • Advanced security systems
  • Robotics and automation
  • Smart agricultural technologies

Features and Benefits

  • Ultra-high-speed processing capabilities
  • Eco-friendly design with reduced environmental impact
  • Improved signal integrity and transmission
  • Flexible compatibility with various industry standards
  • Incorporates advanced fail-safes and protections

The APT1222A delivers cutting-edge innovation, offering developers a reliable component that fosters creativity and efficiency in high-tech projects.
