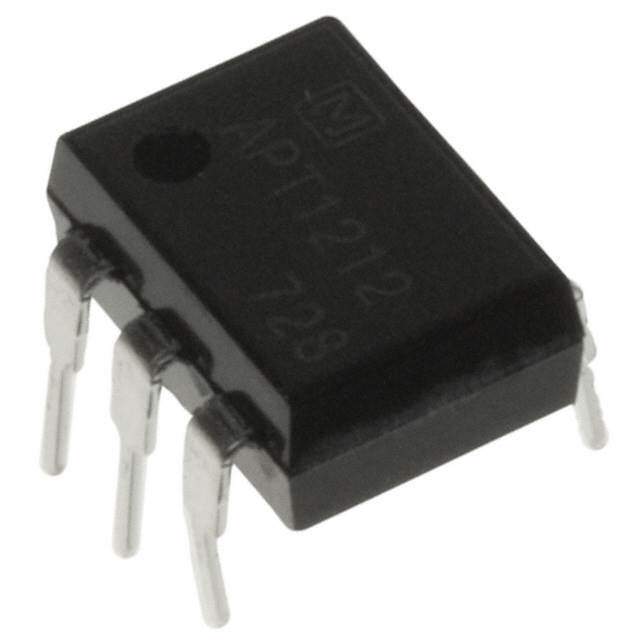

APT1212 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 500V/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.21V
Continuous forward current- Max 50mA
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals cUR, VDE
Win Source Part Number 138437-APT1212
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian APT1212 CAD Model

Description

APT1212: Versatile Diode for Efficient Circuit Protection

The APT1212 is a versatile diode designed to offer robust circuit protection. Its fast response and low forward voltage drop make it ideal for a wide range of applications.

  • Fast Switching: Quick response times protect circuits from voltage spikes.
  • Low Forward Voltage Drop: Enhances the efficiency of power systems.
  • Robust Construction: Built to withstand high surge currents.

Applications:

  • Power Supply Circuits
  • Reverse Polarity Protection
  • Voltage Clamping
  • Rectification Circuits

Benefits: With its fast switching and durable design, the APT1212 ensures reliable protection for sensitive electronic components.
