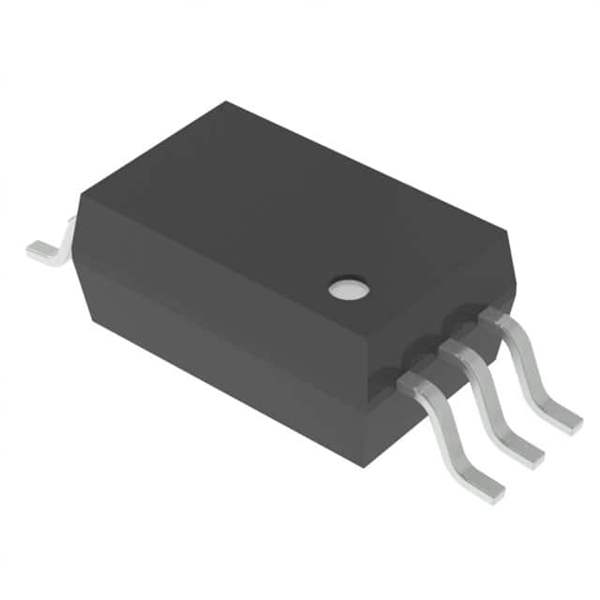

TLP2768A(TP,E
Same model may have multiple batches, images only for reference.

TLP2768A(TP,E

Part No TLP2768A(TP,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description ZSOL6ICTST20M,ACTIVE,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Open Collector
Current - Output / Channel 25 mA
Data Rate 20MBd
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Rise / Fall Time (Typ) 30ns, 30ns
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 25mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Base Product Number TLP2768
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 900003-TLP2768A(TP,E
Ultra Librarian 3D Model Ultra Librarian TLP2768A(TP,E CAD Model

Description

The TLP2768A(TP,E is an optoisolator with an open collector output type.

  • Input Type: DC input type
  • Forward Current: 25mA
  • Voltage Forward: 1.55V
  • Data Rate: 20MBd
  • Channel: single channel
  • Voltage Isolation: 5000Vrms
  • Supply Voltage Range: 2.7V to 5.5V
  • Package Type: 6-SOIC
  • Mounting: surface mountable
  • Temperature Range: -40°C to 125°C
  • Status: active product from Toshiba Semiconductor and Storage
