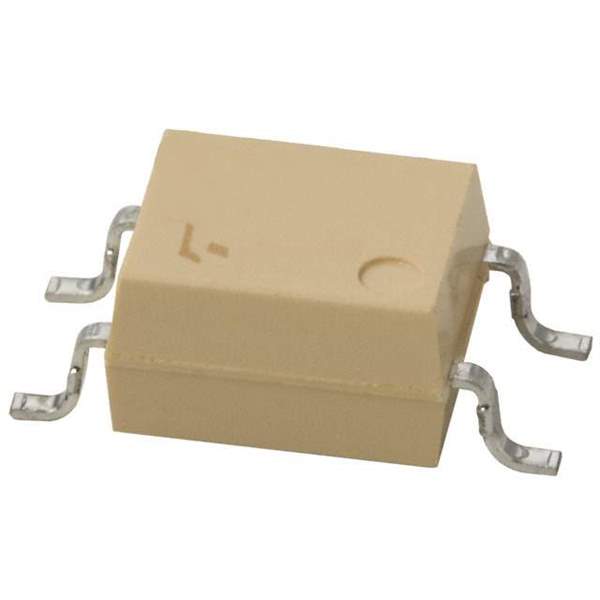

TLP124F

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLP124F
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	OPTOISOLTR 3.75KV TRANS 6-MFSOP
Datasheet	TLP124F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Tube/Rail
Status	Not For New Designs
Number of Channels	1
Isolation Voltage	3750Vrms
Minimum DC Current Transfer Ratio	100% @ 1mA
Maximum DC Current Transfer Ratio	1200% @ 1mA
Switching Turn-On and Turn-Off Time	10μs, 8μs
Rise and Fall Time	8μs, 8μs
Input Type	DC
Output Type	Transistor
Maximum Output Voltage	80V
Channel Output Current	50mA
Forward Voltage	1.15V
Continuous forward current- Max	50mA
Vce Saturation (Max)	400mV
Temperature Range - Operating	-55°C to 100°C
Mounting	SMD (SMT)
Case / Package	6-MFSOP, 4 Lead
Win Source Part Number	1108828-TLP124F
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TLP124F CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage 1108828-TLP124F is an integrated circuit (IC) isolator component that is designed to provide efficient and reliable isolation for your electronic devices. Bold the product name (e.g., 1108828-TLP124F) and manufacturer (e.g., Toshiba Semiconductor and Storage).

Popularity: Medium
Supply and Demand: Balanced
Minimum DC Current Transfer Ratio: 100% @ 1mA
Maximum DC Current Transfer Ratio: 1200% @ 1mA
Switching Turn-On Time: 10μs
Switching Turn-Off Time: 8μs
Rise Time: 8μs
Fall Time: 8μs
Isolation Voltage: 3750Vrms
Continuous Forward Current-Max: 50mA
