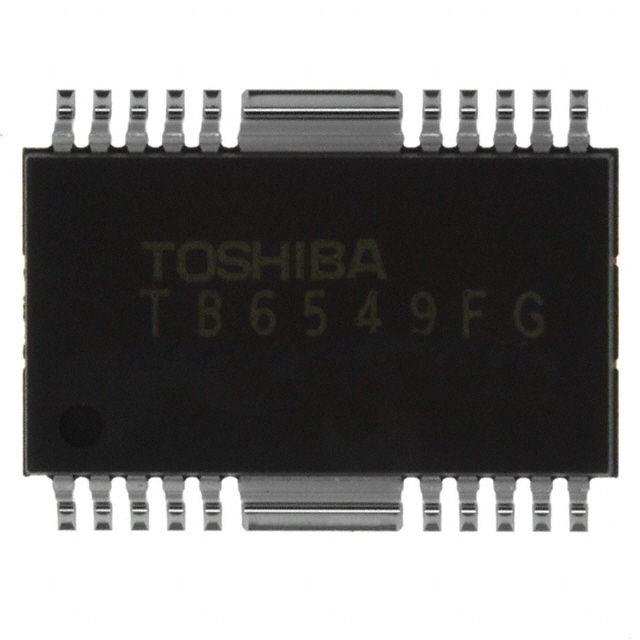

TB6549FG(O,EL) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TB6549FG(O,EL)

Part No TB6549FG(O,EL)
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 20HSOP
Datasheet
TB6549FG(O,EL) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bi-CMOS
Applications General Purpose
Output Current 3.5A
Supply Voltage - Operating 10 V to 27 V
Voltage - Load 10 V to 27 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-HSOP
Win Source Part Number 142306-TB6549FG(O,EL)
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB6549FG(O,EL) CAD Model

Description

The Toshiba Semiconductor and Storage TB6549FG(O,EL) is a fully integrated driver with a control and power stage.

  • Output Current: 3.5A
  • Voltage - Load: 10V to 27V
  • Suitable for: use with brushed DC motors
  • Step Resolution: -
  • Temperature Range: -20°C to 85°C (TA)
  • Package: 20-HSOP
  • Application: commonly used for general purpose applications.
