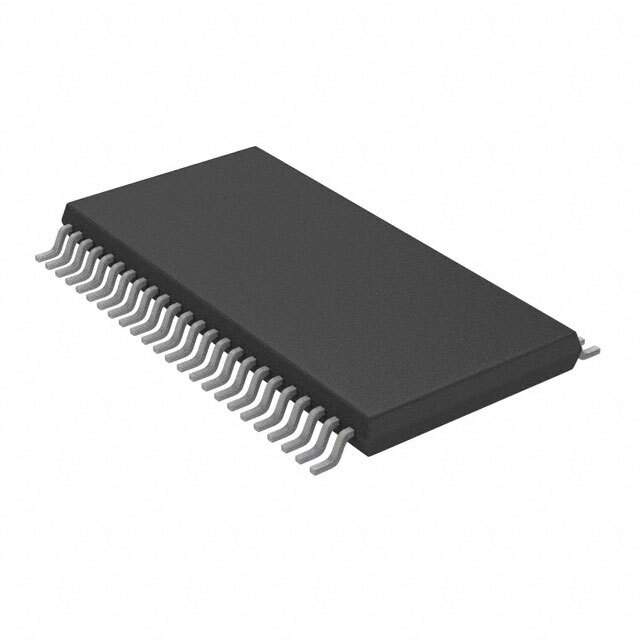

The Toshiba TB62212FNG is a bipolar stepping motor driver that provides precise and efficient control of stepping motors. It is designed to drive two-phase bipolar stepping motors in applications requiring accurate positioning and controlled movement. The driver incorporates features such as constant current control and micro-stepping capability.

Applications:

• Office Automation: Printers, scanners, and copiers.
• Factory Automation: Robotics, CNC machines, and automated assembly lines.
• Medical Equipment: Diagnostic equipment, dispensing systems.
• Gaming Machines: Slot machines, arcade games.
• Security Systems: Surveillance cameras, access control systems.

Features:

• Bipolar Stepping Motor Driver: Drives two-phase bipolar stepping motors.
• Constant Current Control: Provides stable motor current for smooth operation.
• Micro-Stepping Capability: Enables high-resolution positioning.
• Chopper Drive: Efficient current control using PWM (Pulse Width Modulation).
• Overcurrent Protection: Protects the driver from excessive current.
• Thermal Shutdown: Protects the driver from overheating.
• Built-in Protection Circuits: Enhances reliability and prevents damage.

Benefits:

• Precise Motor Control: Enables accurate positioning and controlled movement.
• Smooth Operation: Constant current control reduces motor vibration and noise.
• High Resolution: Micro-stepping capability allows for fine-grained positioning.
• Efficient Power Usage: Chopper drive minimizes power dissipation.
• Robust Protection: Overcurrent and thermal shutdown protect the driver from damage.

Additional Details:

The TB62212FNG typically operates from a supply voltage of 10V to 42V. It is available in a surface mount package such as a HSOP (Thin Small Outline Package). The device includes control inputs for step, direction, and enable signals. The micro-stepping resolution is programmable, allowing for different levels of positioning accuracy. The operating temperature range is usually between -20°C and +85°C. The driver integrates protection against short circuits and voltage surges. The maximum output current depends on the specific application and thermal conditions.
