TB62209FG,EL Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

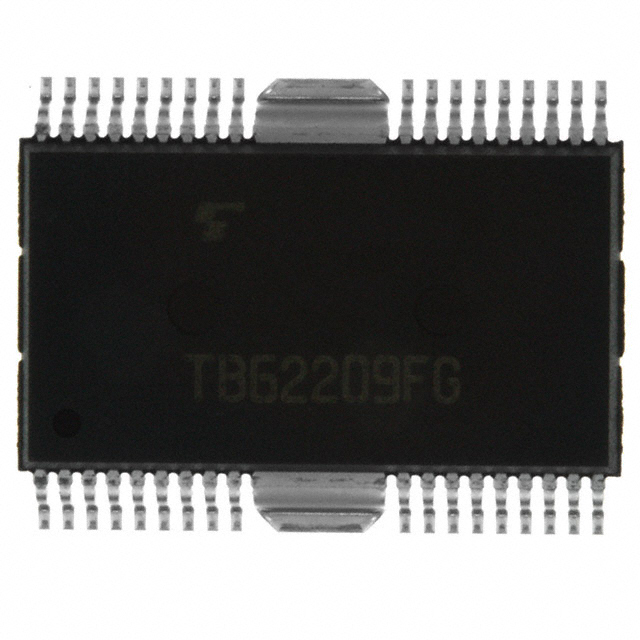

TB62209FG,EL

Part No TB62209FG,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 36HSOP
Datasheet
TB62209FG,EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Purpose Driver - Fully Integrated, Control and Power Stage
Technology DMOS
Step Resolution 1, 1/2, 1/4, 1/8, 1/16
Applications General Purpose
Output Current 1.5A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 13 V to 34 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 36-HSOP
Win Source Part Number 143037-TB62209FG,EL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TB62209FG,EL CAD Model

Description

Toshiba Semiconductor and Storage's TB62209FG,EL is a fully integrated driver with a control and power stage.

  • Driver Design: Designed for use with bipolar stepper motors
  • Step Resolution: 1, 1/2, 1/4, 1/8, 1/16.
  • Popularity: Medium popularity
  • Supply and Demand Status: Limited
  • Voltage Range: 13 V to 34 V
  • Output Current: 1.5A
  • Temperature Range: -40°C to 150°C (TJ)
  • Case/Package: 36-HSOP
