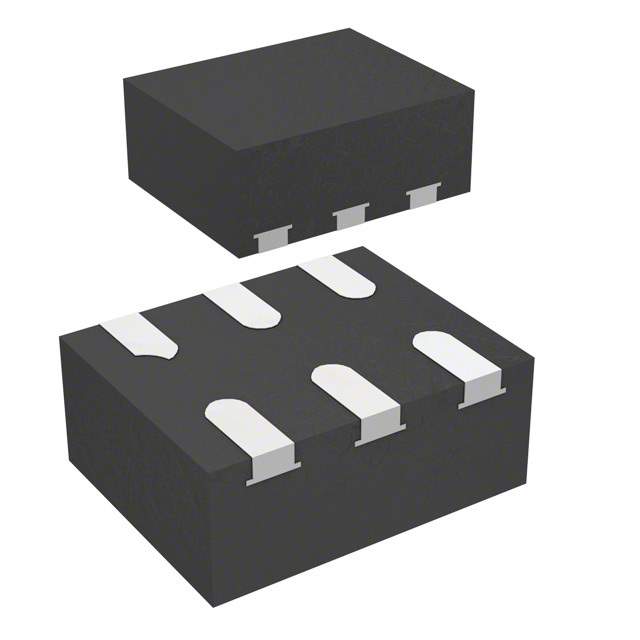

The DF6D7M1N is a TVS (Transient Voltage Suppressor) diode manufactured by Toshiba Semiconductor and Storage. TVS diodes are used to protect sensitive electronic components from voltage spikes or surges caused by electrostatic discharge (ESD), lightning, or inductive switching. These diodes rapidly clamp the voltage to a safe level, diverting excess current away from protected circuits.

Applications:

• ESD Protection: Safeguarding electronic circuits from damage caused by electrostatic discharge.
• Surge Protection: Protecting circuits from voltage surges due to lightning or power line fluctuations.
• Automotive Electronics: Providing protection for automotive electronic systems against transient voltages.
• Portable Devices: Protecting sensitive components in smartphones, tablets, and other portable devices.
• Industrial Equipment: Protecting industrial control systems from voltage transients.

Features:

• Low Clamping Voltage: Limits the voltage to a safe level to prevent damage to downstream circuitry.
• Fast Response Time: Rapidly clamps voltage transients to protect sensitive components.
• High Surge Current Capability: Can withstand high surge currents without being damaged.
• Low Capacitance: Minimizes signal distortion in high-speed data lines.
• Small Package: Compact size allows for use in space-constrained applications.

Benefits:

• Effective Overvoltage Protection: Prevents damage to sensitive electronic components from voltage transients.
• Improved System Reliability: Enhances the reliability of electronic systems by protecting them from voltage surges.
• Reduced Downtime: Minimizes downtime caused by transient voltage-related failures.
• Compact Design: Saves board space in miniaturized electronic devices.
• Cost-Effective Solution: Provides a simple and inexpensive way to protect circuits.

The DF6D7M1N is commonly used in a variety of applications, including data lines, power supplies, and control circuits. A TVS diode operates by remaining in a non-conducting state under normal operating conditions. When a transient voltage exceeds the diode’s breakdown voltage, the diode rapidly switches to a conducting state, clamping the voltage to a safe level and diverting the excess current to ground. Key specifications for the DF6D7M1N typically include the reverse stand-off voltage (VRWM), breakdown voltage (VBR), clamping voltage (VC), and peak pulse current (IPP). The reverse stand-off voltage is the maximum voltage that the diode can withstand without conducting. The breakdown voltage is the voltage at which the diode begins to conduct significantly. The clamping voltage is the voltage to which the diode clamps the transient voltage. The peak pulse current is the maximum surge current that the diode can safely handle without being damaged. Low capacitance is particularly important for protecting high-speed data lines from ESD and other transient voltage events without significantly affecting signal integrity.
