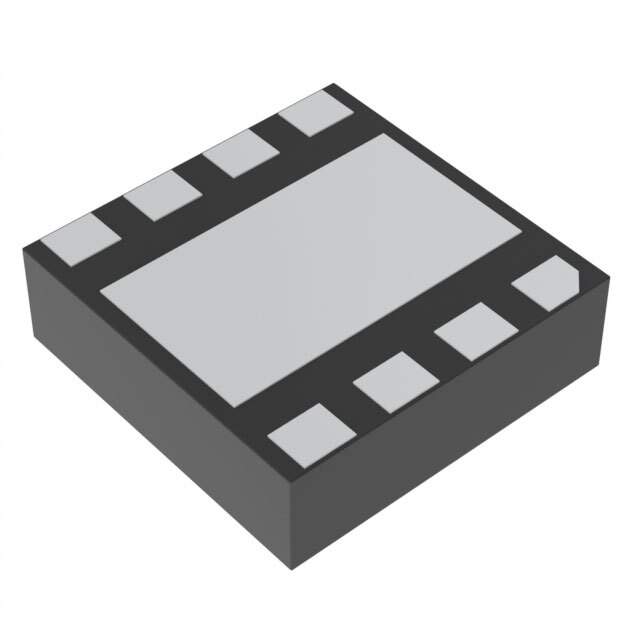

XC6193AA10ER-G Real Image
Same model may have multiple batches, images only for reference.

XC6193AA10ER-G

Part No XC6193AA10ER-G
Manufacturer Torex Semiconductor Ltd
Catalog PMIC - Power Distribution Switches, Load Drivers
Description PUSH BUTTON SMART LOAD SWITCH / Power Switch/Driver 1:1 P-Channel 1.5A 8-USP-B06 (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Torex Semiconductor Ltd
Series XC6193
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 1.8V ~ 6V
Supply Voltage - Operating Not Required
Current - Output (Max) 1.5A
Rds On (Typ) 190mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 8-USP-B06 (2x2)
Package / Case 8-XFDFN Exposed Pad
Base Product Number XC6193
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 893-XC6193AA10ER-GCT,893-XC6193AA10ER-GDKR,893-XC6193AA10ER-GTR
Standard Package 5,000
Win Source Part Number 1201663-XC6193AA10ER-G
Ultra Librarian 3D Model Ultra Librarian XC6193AA10ER-G CAD Model

Description

The XC6193AA10ER-G is a P-channel power distribution switch that operates with an input voltage range of 1.8V to 6V.

  • Input Voltage Range: 1.8V to 6V
  • Maximum Output Current: 1.5A
  • Output Configuration: High-side
  • Package: 8-XFDFN exposed pad
  • Supplier Device Package: 8-USP-B06 (2x2)
  • Fault Protection: Current limiting (fixed) and over-temperature protection
  • Input Type: Non-inverting
  • Interface: On/Off
  • Ideal for: Use in various applications, including load drivers
