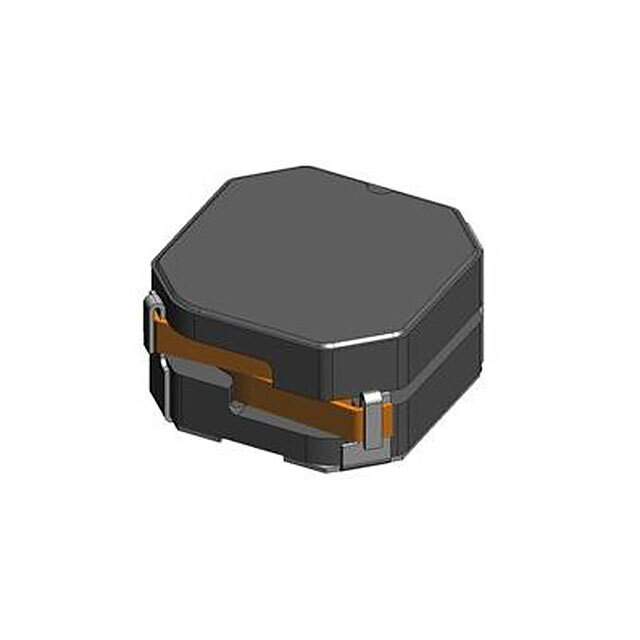

The DD1274AS-H-100M is a wire-wound power inductor manufactured by Toko America Inc. It is designed for use in a variety of power supply applications where high efficiency and a compact size are required. These inductors are characterized by their high current handling capability and low DC resistance.

Applications:

• DC-DC converters
• Power supplies for portable devices
• Buck converters
• Boost converters
• Filtering circuits

Features:

• Wire-wound construction
• High current capacity
• Low DC resistance (DCR)
• Small footprint
• RoHS compliant

Benefits:

• Enables efficient power conversion
• Reduces power loss
• Suitable for space-constrained applications
• Provides stable and reliable performance
• Environmentally friendly

Technical Specifications:

• Inductance: 10 μH
• Tolerance: ±20%
• DC Resistance (DCR): Approximately 0.078 Ohms
• Saturation Current: Around 2.8 Amps
• Rated Current: Around 2.5 Amps
• Dimensions: 12.5mm x 12.5mm x 4.5mm (Length x Width x Height)

Note: Always consult the manufacturer's datasheet for the most accurate specifications and application notes for the DD1274AS-H-100M.
