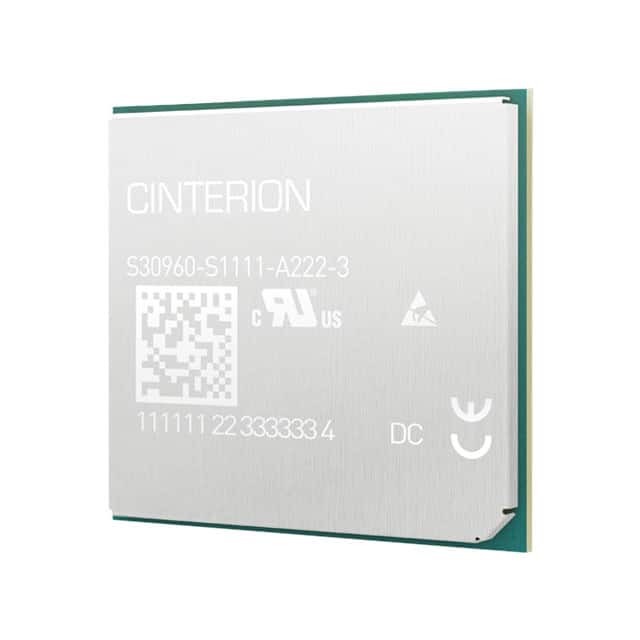

EHS6 Rel.4 Thales DIS (formerly Gemalto)
Same model may have multiple batches, images only for reference.

EHS6 Rel.4

Part No EHS6 Rel.4
Manufacturer Thales DIS (formerly Gemalto)
Catalog RF Transceiver Modules
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Thales DIS (formerly Gemalto)
Series Cinterion EHS6
Package Tape & Reel
RF Family/Standard Cellular
Protocol EDGE, GPRS, GSM, HSPA+, UMTS
Modulation 16-QAM
Frequency 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Data Rate 7.2Mbps
Power - Output 33dBm
Serial Interfaces ADC, GPIO, I²C, I²S, PCM, SPI, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part Intel XMM 6260
Memory Size 10MB Flash, 10MB RAM
Voltage - Supply 3.3V ~ 4.5V
Current - Transmitting 30mA ~ 710mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 90°C
Package / Case 122-LGA Module
Base Product Number EHS6
MSL Level 4 (72 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1316203-EHS6 Rel.4
Ultra Librarian 3D Model Ultra Librarian EHS6 Rel.4 CAD Model

Description

The Thales DIS (formerly Gemalto) EHS6 Rel.4 is an RF transceiver module and modem that belongs to the RF/IF and RFID category.

  • Category: RF/IF and RFID
  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Frequency Range: 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
  • Protocol: EDGE, GPRS, GSM, HSPA+, UMTS
  • Data Rate: 7.2Mbps
  • Memory Size: 10MB Flash, 10MB RAM
  • Antenna Type: Antenna not included
  • Power Output: 33dBm
  • Utilized IC/Part: Intel XMM 6260
  • RF Family/Standard: Cellular
  • Modulation: 16-QAM
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PCM, SPI, UART, USB
  • Current Transmitting: 30mA to 710mA
  • Voltage Supply: 3.3V to 4.5V
  • Package/Case: 122-LGA Module
  • Operating Temperature: -40°C to 90°C
  • ECCN: 5A992C
  • HTSUS: 8517.62.0090
  • MSL Level: 4 (72 Hours)
